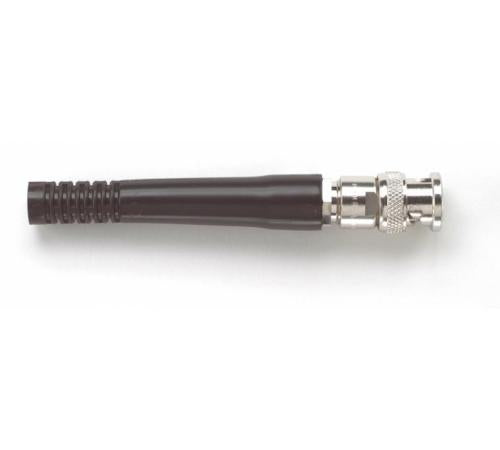

Fluke Pomona 5066 0 BNC Male Connector with Strain Relief for RG58 Cable - High Quality Test Lead Accessory for Electronics, Networking & Lab Equipment (Item# 1917129)
Fluke Pomona 5066 0 BNC Male Connector with Strain Relief for RG58 Cable - High Quality Test Lead Accessory for Electronics, Networking & Lab Equipment (Item# 1917129)

Fluke Pomona 5066 0 BNC Male Connector with Strain Relief for RG58 Cable - High Quality Test Lead Accessory for Electronics, Networking & Lab Equipment (Item# 1917129)

$88 $160 -45%

Free shipping on all orders over $50

7-15 days international

21 people viewing this product right now!

30-day free returns

Secure checkout

10626002

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Sold Per Pack 5pcs

(item no. 1917129)

  • BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder

Specifications

Materials
Connector
Body and FittingsBrass per QQ-B-626, Alloy 360, ½ Hard.
Center ContactBrass per QQ-B-626, Alloy 360, ½ Hard.
DielectricTeflon per ASTM D1457.
Vee GasketSilicone rubber per QQ-R-765, Class 11A, Grade 50.
Clamp NutBrass per QQ-B-626, Alloy 360, ½ Hard.
Finish
Body and FittingsNickel plated, tarnish resistant
Center ContactGold plated per requirements of MIL-C-39012
Clamp NutNickel plated per QQ-N-290, Class 2.
Ratings
Impedance50 Ohms
FrequencyDC to 3 GHz.
VSWR1.35 @ 3 GHz.
Insertion loss.2 dB @ 3 GHz.
Cable Retention Force40 lbs.
Mating Cycles500
Temperature+50°C. (+122°F.) Max.
Voltage
Hands free testing in controlled voltage environments500 Peak Max.
For CE compliancenot intended for hand-held use at voltage above 33 Vrms/70 Vdc.

Data Sheets
