(Item no. 3326798)
NOTE: Fluke Network lead times can vary due to component and supply issues.
Fluke Networks FTK1000 Simplifiber Pro Basic Fiber Verification Kit. The new SimpliFiber Pro Optical Power Meter and Fiber Test Kits are the best "go-to" kits for anyone involved in first-line optical fiber cabling installation and verification. Whether you are a fiber technician or contractor, our expertly configured kits contain all the tools necessary to quickly measure loss and power levels, locate faults and polarity issues, and inspect and clean connector end-faces. Industry-leading features such as single-port dual-wavelength testing and auto-wavelength detection, combined with time-saving capabilities such as CheckActive, FindFiber, and Min/Max make SimpliFiber Pro the best fiber test kits on the market.
SimpliFiber Pro is an improved fiber test set that simplifies and shortens the front-line testing process by:
- Reducing the multiple steps and using a simultaneous dual-wavelength testing feature to measure the range of power levels in just half the time
- Allowing for a non-touch solution to check for a live fiber without having to plug into ports
- Enabling a network technician to do time-consuming procedures that normally require a team
SimpliFiber Pro Optical Power Meter and Fiber Test Kits provide you with all the tools you need to help you verify proper installation and maintain fiber-optic cabling systems. Available in kits or a la carte, these tools are simple and effective and provide you with the capability to measure loss and power levels, locate faults and polarity issues, and inspect connector end-faces.
A system approach SimpliFiber Pro is a product suite that allows you to match products and functionality to your needs. SimpliFiber Pro is made up of four unique fiber platforms: the power meter, the multimode source, the singlemode source, and the FindFiberTM Remote ID source. Each platform has uniquely competitive features, bundled in convenient kits, to meet the needs of today’s technicians. The optical power meter is included in all kits and is calibrated for accuracy at six different wavelengths (850, 1300, 1310, 1490, 1550, 1625). The meter features the ability to save a reference power level, allowing a direct display of fiber loss. It also has an intuitive four-button panel, a large LCD display screen, and a serial port. The meter’s single connector permits simple network connection and straightforward reference power measurement. Interchangeable connector adapters are available in the most popular connector styles.
Features
- Dual-wavelength testing
- Tests multimode and singlemode fiber
- Measures optical power and loss at 850 nm and 1300 nm using the 850/1300 source and meter
- Measures optical power and loss at 1310 nm and 1550 nm using the 1310/1550 source; calibrated wavelengths in the power meter at 1490 nm and 1625 nm also allow for readings from other sources
- Offers quick remote identification of cabling runs with FindFiber Remote IDs
- Conduct pre-testing and qualify cabling runs
- Auto-senses source wavelength
- Saves 1000 test results
- Single port testing for simple network connection
- Ruggedly built for demanding field use
- LinkWare Cable Test Management Software documents, reports, and manages all test data

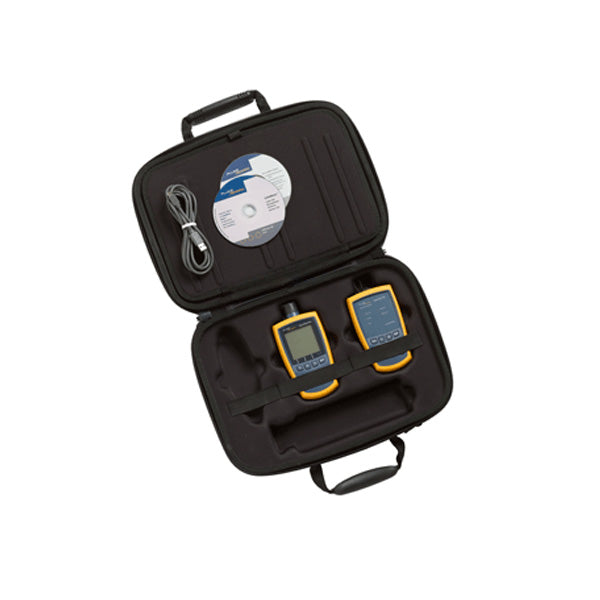

Included
- 1 - SimpliFiber Pro optical power meter
- 1 - 850/1300 multimode source
- 1 - Carrying case
- 1 - SC power meter adapter
- 1 - USB interface cable
- 1 - Linkware PC software CD
- 1 - SimpliFiber Pro product manual CD
- 4 - AA batteries
- 1 - User manual
