Fluke I1000S AC Current Clamp Meter - 1000A AC Current Measurement Tool (Item# 1568487) for Electrical Testing, HVAC Maintenance & Industrial Applications
Fluke I1000S AC Current Clamp Meter - 1000A AC Current Measurement Tool (Item# 1568487) for Electrical Testing, HVAC Maintenance & Industrial Applications

Fluke I1000S AC Current Clamp Meter - 1000A AC Current Measurement Tool (Item# 1568487) for Electrical Testing, HVAC Maintenance & Industrial Applications

$1076.35 $1957 -45%

Free shipping on all orders over $50

7-15 days international

20 people viewing this product right now!

30-day free returns

Secure checkout

12546919

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

(item no. 1568487)

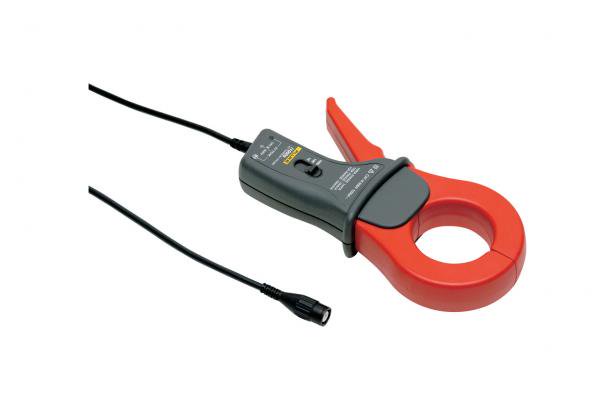

Product overview: Fluke i1000s AC Current Probe

Designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics.

Features

  • Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
  • A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
  • Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
  • Can be used with multimeters with optional PM9081/001 BNC/Banana adapter
  • One year warranty



Specifications: Fluke i1000s AC Current Probe

Specifications
Nominal current range10 A
100 A
1000 A
Continuous current range0.1 A - 10 A
0.1 A - 100 A
1 A - 1000 A
Maximum non-descructive current2000 A
Lowest measureable current0.1
Basic accuracy1% + 1 A
(48-65 Hz)
(% reading + floorspec)
Useable frequency5 Hz - 100 kHz
Output level(s)100 mv/A
10 mv/A
1 mv/A
Safety Specifications
SafetyCAT III, 600 V
CAT IV, 300V
Maximum voltage600 V AC
Mechanical and General Specifications
Warranty1 year
Maximum conductor diameter54 mm
Output cable length1.6 m
BNC adapterYes





Resources: Fluke i1000s AC Current Probe
