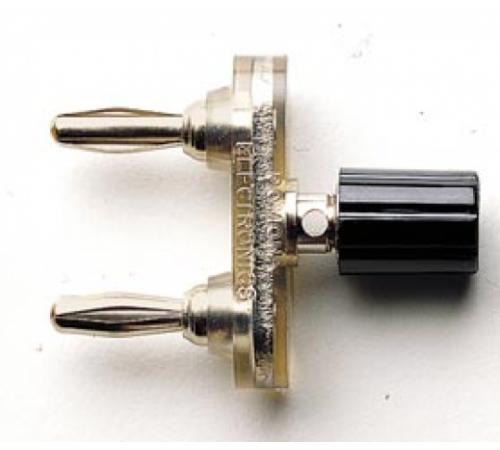

Fluke Pomona 5165 Double Banana Plug Shorting Bar with Binding Post - Test Lead Accessory for Electrical Testing & Lab Equipment (Model 1917980, 1918007) - Perfect for Circuit Testing, Calibration & Safety Shorting Applications

$126.5 $230 -45%

Free shipping on all orders over $50

7-15 days international

30 people viewing this product right now!

30-day free returns

Secure checkout

15599248

Guranteed safe checkout

Specifications

Materials
Upper Conn.
Binding Post Body	Brass, per QQ-B-626 Alloy 360, ½ Hard.
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation	Polycarbonate molded to collar.
Color	See ordering information.
Shorting Bar
Material	Brass, per QQ-B-613, Composition
Finish	Nickel plated per QQ-N-290, Class 2,
Insulation	Polypropylene molded to binding post, shorting bar and banana plugs.
Color	Clear.
Marking	“POMONA ELECTRONICS” “MODEL 5165”
Lower Conn.
Banana Plugs
Material	Spring: Beryllium Copper per QQ-C-533, Berylco 25, Cond. H.T.
Plug body	Brass, per QQ-B-626, Alloy 360, ½ Hard
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Ratings
Operating Temperature	+50°C. (+122°F.) Max.
Operating Voltage	2500 VRMS
Current	15 Amperes
Resistance	Less than 1.5 milliohms.

Model Number	Model Name	Color
5165-0	Shorted Banana W/Bind Post (Black)	black
5165-2	Shorted Banana W/Bind Post (Red)	red
