DIN Rail Mount Temperature and Humidity Controller with Dehumidification Function - S/M1 PROG Model | Multi-Range Thermocouple Input | 24VAC/DC Power | SSR 12VDC Output | Ideal for HVAC Systems, Greenhouses, and Industrial Automation
$125.95 $229
-45%
Free shipping on all orders over $50
7-15 days international
11 people viewing this product right now!
30-day free returns
Secure checkout
20971457
Guranteed safe checkout
DESCRIPTION

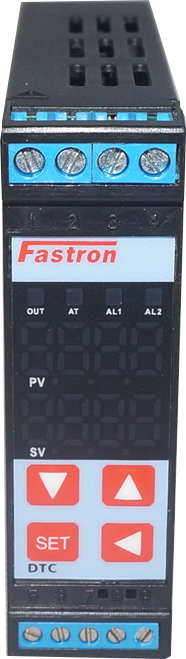

Fastron DTC1-S/M1-PROG, DIN Rail Mount Temperature/Humidity Controller with Dehumidification Function, Multirange Thermocouple Input, Pt100 Input Jumper Setting, 24VAC/DC, SSR 12VDC Output output
- Optional converter function
- 2 Input 1 Output, and 1 Input Two Output Versions available
- Optional 60 Segment Multi Pattern Program Control feature
- 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response)
- CE Approved
- Each unit needs just 22.5mm width Din Rail space
- EC Compliant ()
- Various specials available for unique applications.
Specification
| Fastron Part Number | DTC1-S/M1-PROG |
| Control Output | SSR 12VDC@30mA |
| Input | Multirange K/J/R/S/B/E/T/PT100/Cu50/Linear Voltage Current(Optional)/N/W1/W2 |
| Alarm | Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC |
| Options | 60 Step Program Control |
| Mounting Style | 22.5 x 75mm Din Rail Mount |
| Supply Voltage | 24VAC/DC |
| Termination Style | Screw |
| Weight | 230g |
| Factory Pack Qty | 1 |
| CE | Yes |
Selection Chart
PWM Control Wiring
