DESCRIPTION

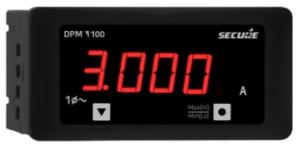

Secure Meters DPM48I200-2, 48mm x 96mm Digital DC Ammeter, DC Voltmeter +/-150mV Shunt Input, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)



Features

  • LED Dual Display
  • 250mS Response Time
  • PC 94 UL V0
  • Each unit needs just 96 x 48mm Panel Space
  • 52mm Depth
  • CE Approved
  • ROHS and REACH
    Specification
    Secure Part NumberDPM48I200-2
    Frequency Range45-65 Hz
    Accuracy0.5%
    Input+/-150mVDC
    Over Rangex 1.5
    Operating Temperature0 - 60°C
    Supply Voltage40-300VAC/DC
    Termination StyleScrew
    Mounting Style 96 x 48mm Panel Mount
    Case MaterialPC - UL 94 V0
    StandardsIEC / EN 61010-1; IEC / EN 61010-2-030
    Protection DegreeIP54 (IP65 Optional)
    Weight280g
    Factory Pack Qty1
