Materials |

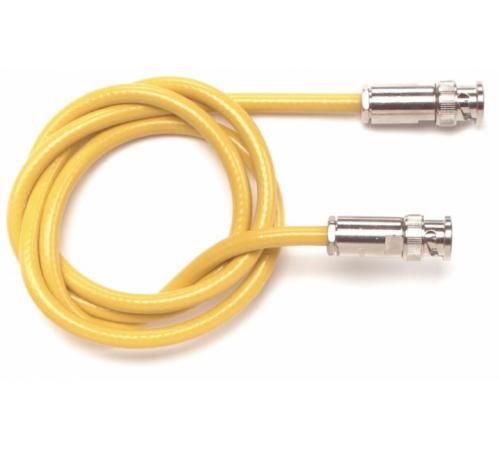

Connector – 1st End | Triaxial Cable Male (BNC 2 Lug Bayonet Style) |
Body and Fittings | Brass, Tarnish Resistant |
Intermediate and Center contacts | Gold Plated Brass per MIL-C-39012 |
Cable | Belden 9222 Triaxial Cable, 20 AWG stranding 7x28, T.C. Polyethylene Insulation, 6.15 (.242) O.D. Color: Yellow |
Marking | “POMONA ELECTRONICS 5054-XX” |
Connector - 2nd End | Same as first. |
Ratings |
Operating Voltage | 500 VRMS |
Nominal Impedance | 50 Ohms |
