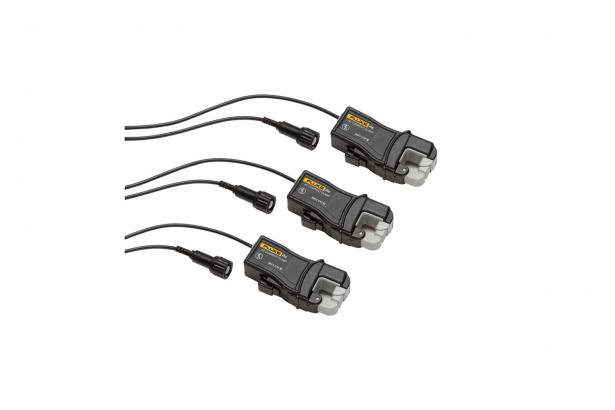

A pack of 3 pieces of the i5s current clamps, specially configured to provide low current accuracy while taking measurements on secondary current transformers. This cost-saving 3-pack is perfect for use with 3-phase tools such as the Fluke 434 or Fluke 435.
Features
- Low level current clamp measures up to 5 A ac
- Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
- Take accurate readings without breakings the circuit
- CAT III 600 V (For insulated conductors only)
Specifications: Fluke i5sPQ3, 5 A AC Current Clamps, 3-pack
| Specifications |
| Nominal current range | 5 A |
| Continuous current range | 10 mA to 6 A |
| Maximum non-destructive current | 70 A |
| Lowest measurable current | 10 mA |
| Basic accuracy | | 48 Hz to 65 Hz |
| 10 mA to 1 A | 1% + 5 mA |
| 1 A to 5 A | 1% |
| Useable frequency | 40 Hz to 5 kHz |
| Output level(s) | 400 mV/A |
| Input load impedance | > 1 MΩ in parallel with up to 47 pF |
| Crest factor | ≤ 3, add 0.7% to accuracy |
| Safety specifications |
| Safety | CAT III 600 V per IEC/EN61010-1, Pollution Degree 2 |
| Maximum voltage | 600 V AC |
| Mechanical and General Specifications |
| Warranty | 1 year |
| Maximum conductor diameter | 15 mm |
| Output cable length | 2.5 m |
| BNC adapter | Yes |
| BNC to banana adapter included | No |
Fluke i5sPQ3 Includes:
5 A ac Current Clamps, 3-pack
