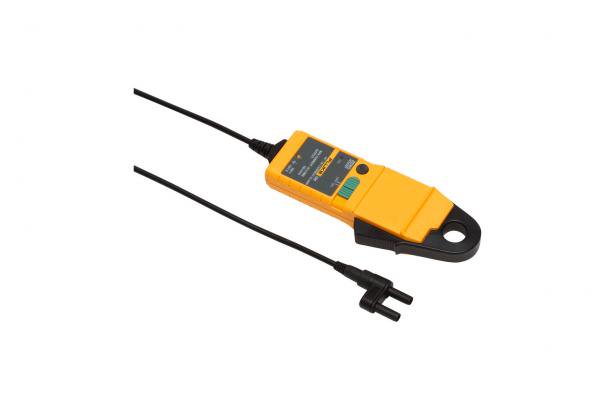

Fluke i30 AC/DC Current Clamp Meter - Professional Electrical Testing Tool for HVAC, Automotive & Industrial Use (Model 2584920) - Perfect for Electricians, Technicians & DIY Home Repairs

$701.25 $1275 -45%

Free shipping on all orders over $50

7-15 days international

23 people viewing this product right now!

30-day free returns

Secure checkout

34048815

Guranteed safe checkout

Specifications: Fluke i30 AC/DC Current Clamp

Electrical Specifications
Specified current range	30 mA to 30 A DC, 30 mA to 20 A AC rms
Usable current range	5 mA to 30 A DC, 30 mA to 20 A AC rms
Crest Factor	1.4 in
Output sensitivity	100 mV/A
Accuracy (at +25°C)	±1% of reading ±2 mA
Resolution	±1 mA
Load impedance	> 10 k Ohms and ≤ 100pF
Conductor position sensitivity	±1% relative to center reading
Frequency range	DC to 20 kHz (-0.5 dB)
Temperature coefficient	±0.01% of reading/°C
Power supply	9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section)	300 V AC rms or DC
General Specifications
Maximum conductor size	19 mm diameter
Output connection	4 mm safety connector
Output zero	Manual adjust via thumbwheel
Cable length	1.5 meters
Operating temperature range	0°C to +50°C
Storage temperature range (with battery removed)	-20°C to +85°C
Operating humidity	15% to 85% (non-condensing)
Weight	250 g
Safety	IEC 61010-1, Pollution Degree 2
	IEC 61010-2- 032: CAT III 300V
	Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz.
EMC Compatibility	IEC 61326-1: Portable Electromagnetic Environment

Fluke i30

AC/DC Current Clamp
