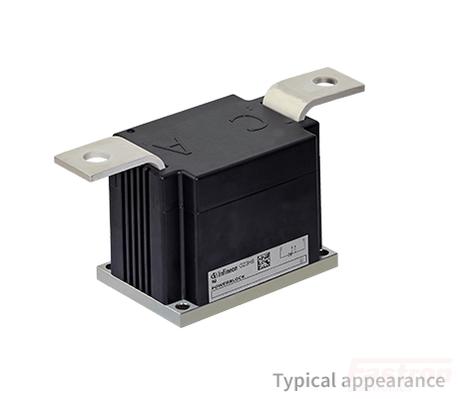

Infineon DZ1070N18K Single Diode Module
Features
- Pressure Contact Technology
- Electrically insulated base plate
- Very low forward voltage drop
- Very low leakage current
- Planar passivated chips
- International standard package
- 3600V Isolation
- 70mm Base Width
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Rectifiers for UPS
- Battery Chargers
- Field Supply for DC Motors
- DC supply for PWM inverter
Specification
Infineon Part Number | DZ1070N18K |
Vrrm | 1800V |
Diode Configuration | Single Diode Module |
IF(av) @ 85 Deg C | 1100 Amp |
Package Size | W:70mm L:176mm D:90mm |
Itsm | 41 kA |
VF(to) | 0.76V |
Tj(max) | 150°C |
rF | 0.073mΩ |
Terminals | M13 Bolt |
Hole Centres | 80mm x 58mm (M6) |
Gate Terminals | N/A |
R th(j-c) | 0.048°C/W |
R th(c-h) | 0.015°C/W |
Weight | 1950g |
Mounting Torque | 6 Nm (18 Nm Terminals) |
Factory Pack Qty | 1 |
Certification | UL Listed, ROHS |
Infineon Headquarters | Germany |
