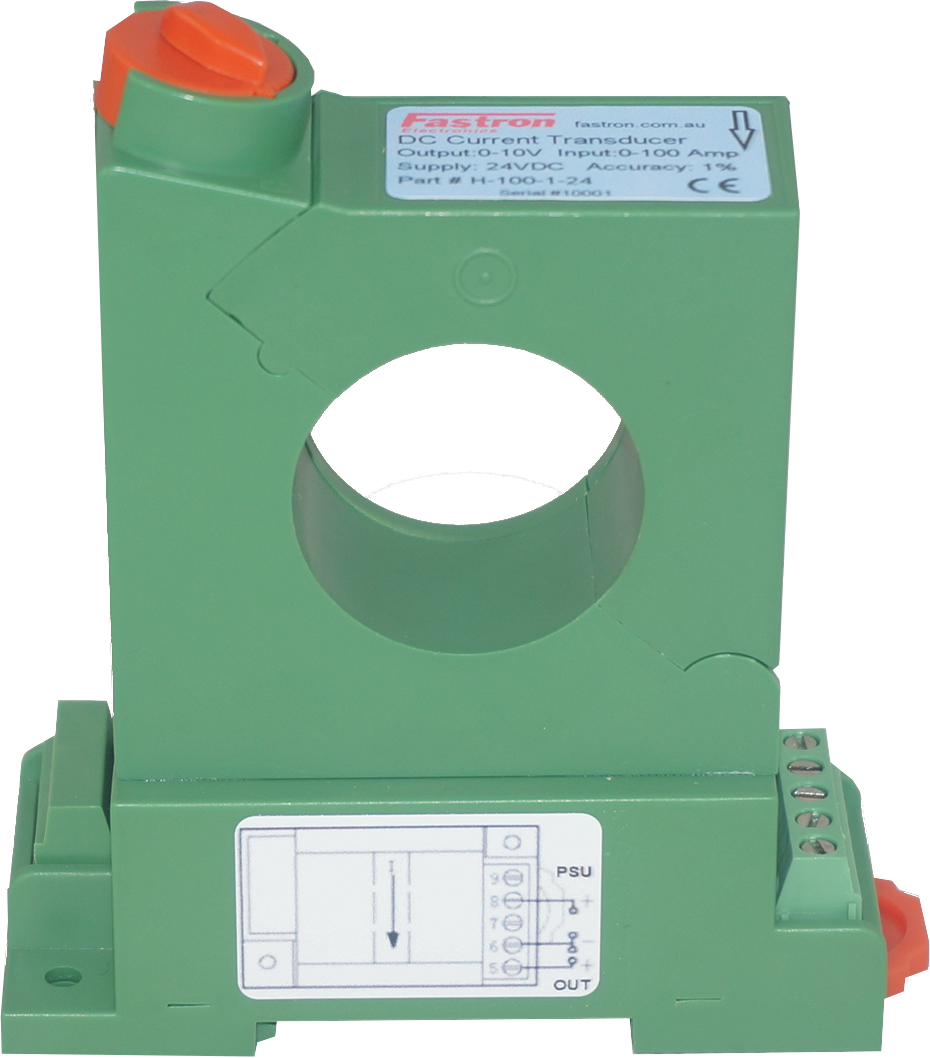

BH-10-1-24, Split Core Hall Effect DC Current Transducer, +/-10 Amp DC, +/-10V Bipolar output, 31mm aperture, 24VDC supply
Compact and versatile Split Core DC current sensor, +/-10 Amp DC, +/-10VDC Bipolar or 0-10V Bipolar Analogue Output
Features
- ⌀31mm Aperture
- Split Core
- DC Bipolar or Bipolar Measurement
- +/-10V analogue output
- Busbar, or DIN Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | BH-10-1-24 |
| Technology | DC Hall Effect Current Transducer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC |
| Nominal Current (DC) | +/-10 Amp DC |
| Response Time | < 200mS |
| Output | Bipolar 0-10V, or Bipolar +/-10VDC Analogue |
| Isolation | 2.5kV (AC, 10Hz, 1 min) |
| Bandwidth | DC |
| Mounting Style | DIN Rail Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 2% |
| Termination Style | Elevator Screw
|
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
