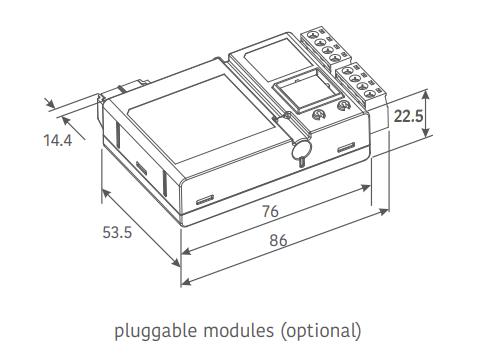

Elite E500M-2012, Configurable Pulse Input Output Module for Secure, Elite 500 Series
The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.
Elite 500 Features :
- Measurement of instantaneous values and accumulated energy. Includes Harmonics to the 31st
Accuracy class to 0.2S
- Dual Internal Loggers
- Measurement of 20 minimal and maximal values in different time periods
- RS 232/RS 485 communication up to 38400 bit/s or Ethernet communication
- MODBUS communication protocol
- Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs
- Universal or AC power supply
- Graphic Colour TFT 320 x 240 pixels (53x70mm)
- Automatic range of nominal current up to 6 A and nominal voltage up to 500 V
- Multilingual support
- User-friendly Free ECon Configuration software
