DIN Rail Mount HVAC Duct Heater PWM Controller - 0-5V Input, 24VAC/DC & 12VDC SSR Output for Industrial Automation & Climate Control Systems
$125.95 $229
-45%
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
66643813
Guranteed safe checkout
DESCRIPTION

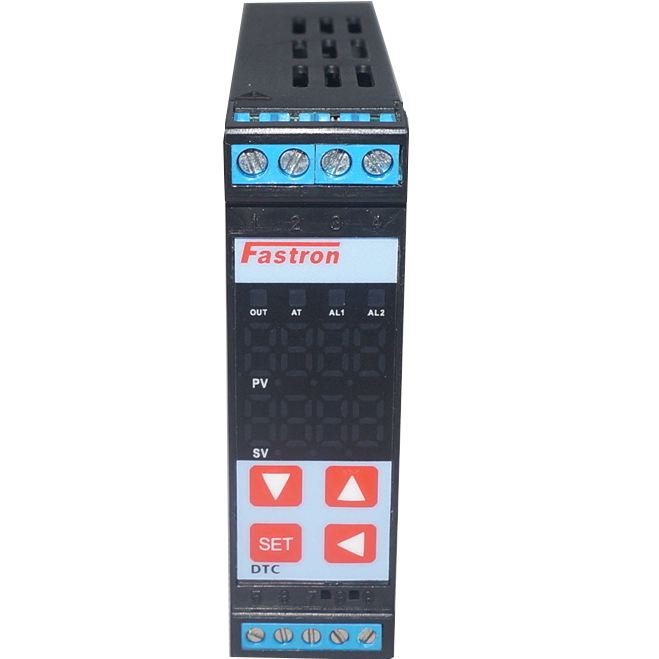

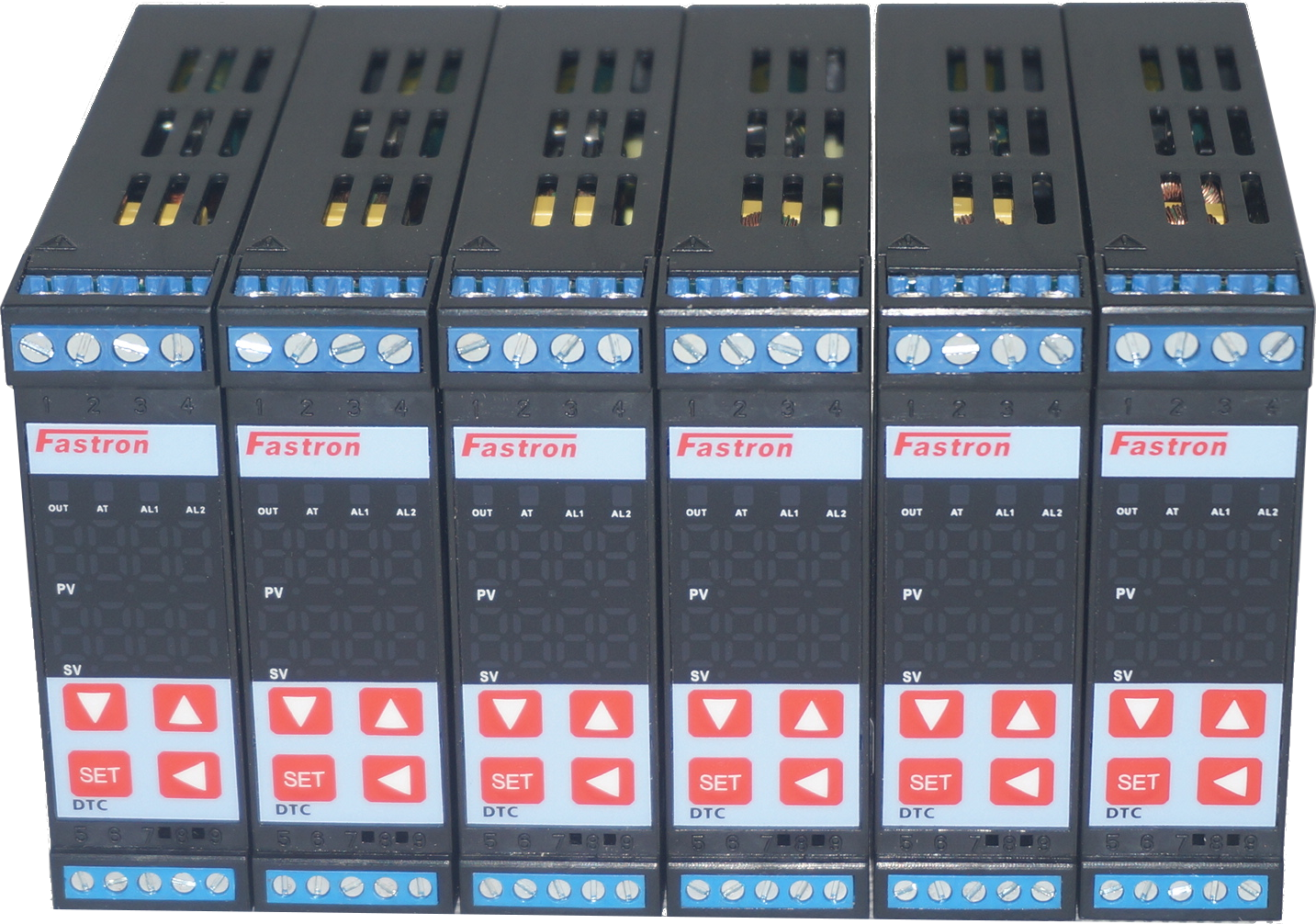

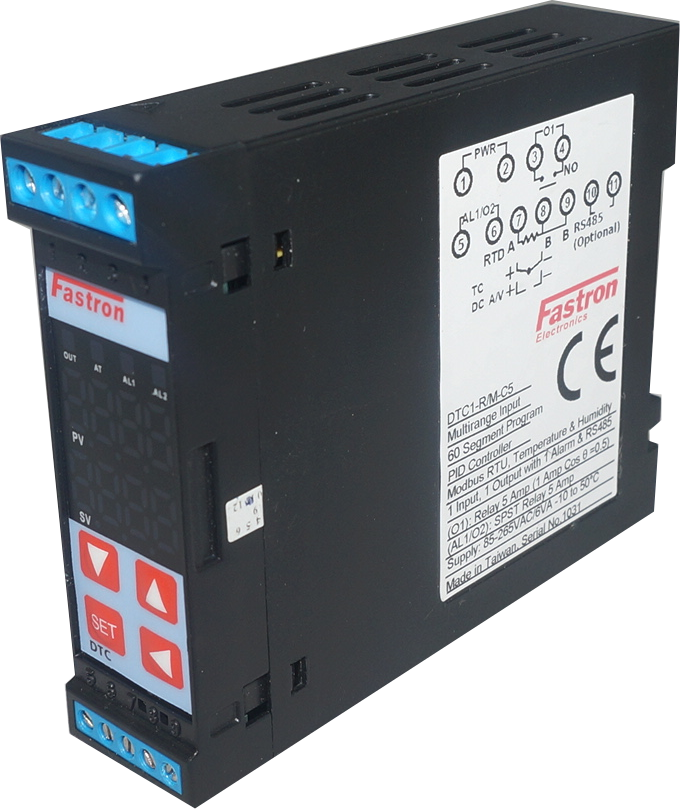

Fastron DTC1-S/M1-SP08, DIN Rail Mount HVAC Duct Heater PWM Controller, 0-5V Input, 24VAC/DC, 12VDC SSR Output
- Optional converter function
- 2 Input 1 Output, and 1 Input Two Output Versions available
- Optional 60 Segment Multi Pattern Program Control feature
- 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response)
- CE Approved
- Each unit needs just 22.5mm width Din Rail space
- EC Compliant ()
- Various specials available for unique applications.
Specification
| Fastron Part Number | DTC1-S/M1-SP08 |
| Control Output | SSR 12VDC@30mA |
| Input | Multirange K/J/R/S/B/E/T/Linear Voltage 0-5V/Linear Current 4-20mA/Pt100 |
| Alarm | Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC |
| Options | PWM for HVAC Systems |
| Mounting Style | 22.5 x 75mm Din Rail Mount |
| Supply Voltage | 24VAC/DC |
| Termination Style | Screw |
| Weight | 230g |
| Factory Pack Qty | 1 |
| CE | Yes |
??
Selection Chart
PWM Control Wiring
