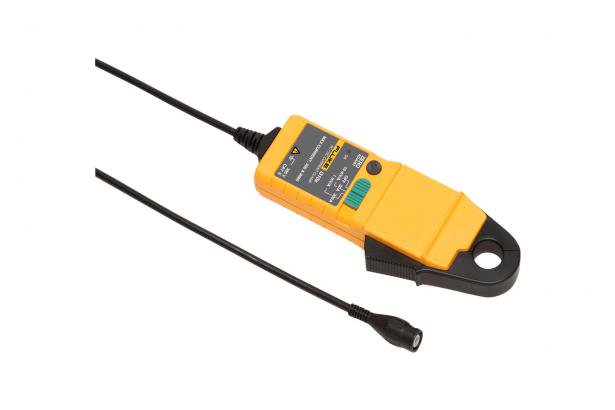

Fluke I310S AC/DC Current Clamp Meter - 400A AC/DC Current Measurement - Professional Electrical Testing Tool for HVAC, Automotive & Industrial Use (Item# 2840309)

$635.8 $1156 -45%

Free shipping on all orders over $50

7-15 days international

27 people viewing this product right now!

30-day free returns

Secure checkout

75422534

Guranteed safe checkout

Specifications: Fluke i310s Current Probe

Electrical Characteristics
Current ranges	30 A and 300 A AC rms or ±45 A and 450 A DC
Measuring ranges	±45 A and 450 A DC
AC rms or DC	±45 A and 450 A
Inrush current	600A AC rms MAX
Output sensitivity	10 mV/A (30 A)
	1 mV/A (300 A)
Accuracy (at +23°C)	(30 A range)	±1% of reading ±50 mA
	(300 A range)	±1% of reading ±300 mA
Bandwidth to meet accuracy specification	1 kHz
Phase shift below 1 kHz	< 2 degrees
Resolution	±50 mA (30 A)
	±100 mA (300 A)
Load impedance	> 10 k Ohms and ≤100 pF
Conductor position sensitivity	±1.5% relative to centre reading
Frequency range (small signal)	DC to 20 kHz (-3 dB)
Phase shift below 1 kHz	< 2°
Temperature coefficient	±0.1% of reading / °C
Power supply	9 V Alkaline, MN1604/PP3
Battery life	30 Hours, low battery indicator
Working voltage (see Safety Standards section)	300 V AC rms or DC
General Characteristics
Maximum conductor size	19 mm diameter
Output connection	Safety BNC connector
	Supplied with safety 4mm adaptor
Output zero	Manual adjust via thumbwheel
Cable length	2 metres
Operating temperature range	-10 to +50°C
Storage temperature range (with battery removed)	-20 to +85°C
Operating humidity	15% to 85% (non-condensing)
Weight	250 g
Safety	IEC 61010-1, Pollution Degree 2
	IEC 61010-2- 032: CAT III 300V
	Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz.
EMC Compatibility	IEC 61326-1: Portable Electromagnetic Environment
