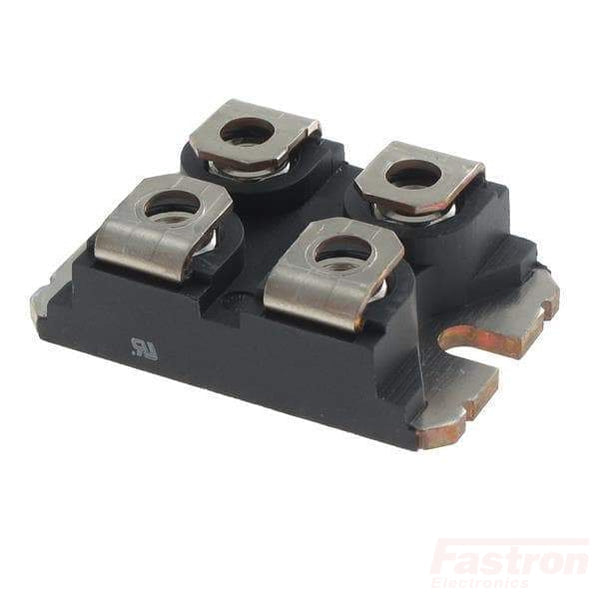

Westcode-IXYS-Littlefuse DMA150E1600NA, Single Diode Module, 1600V, 150Amp, SOT-227B
Features
- Package with DCB ceramic base plate
- Isolation voltage 3000 V∼
- Planar glass passivated chips
- Low forward voltage drop
- Leads suitable for PC board soldering
- UL registered, E 148688
Applications
- Heat and temperature control for industrial furnaces and chemical processes
- Lighting control
- Motor control
- Power converter
Advantages
- Easy to mount with two screws
- Space and weight savings
- Improved temperature and power cycling capability
- High power density
Specification
| Westcode-IXYS-Littlefuse Part Number | DMA150E1600NA |
| AC Line voltage | 533V |
| Device Configuration | Three Phase Half Wave Diode Rectifier Bridge |
| DC Output @ 95 Deg C | 150 Amp |
| Package Size | W:38mm L:25mm D:12mm (SOT-227B) |
| Itsm | 800 A |
| VF(to) | 0.82V |
| Tj(max) | 150°C |
| rF | 6.3mΩ |
| Terminals | M4 (1.5Nm) |
| Hole Centres | 32mm (M4) |
| Gate Terminals | N/A |
| R th(j-c) | 0.6°C/W |
| R th(c-h) | 0.1°C/W |
| Weight | 30g |
| Isolation | 3kV |
| Factory Pack Qty | 10 |
| Certification | UL Listed |
| IXYS Headquarters | United States |
