(item no. 657202)
Product Overview

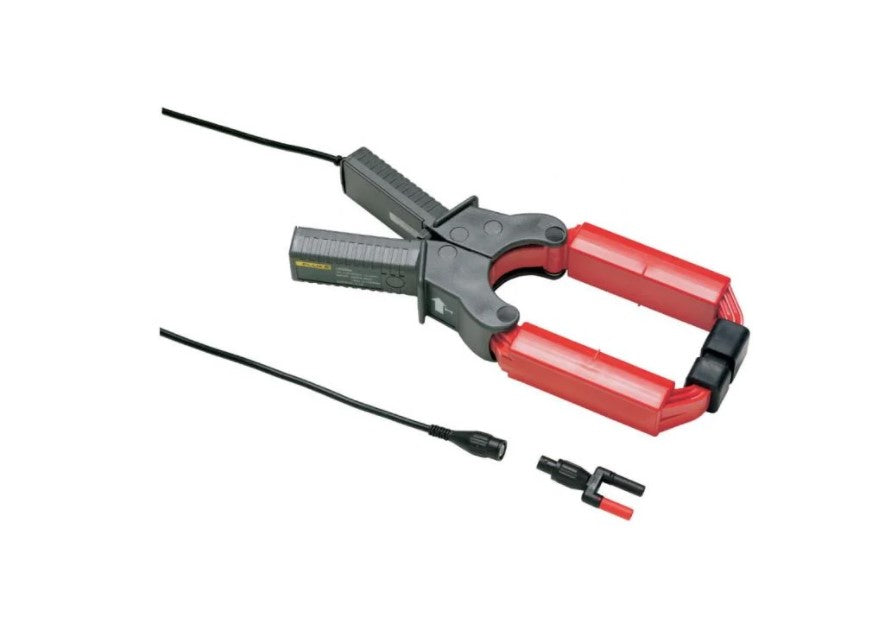

The Fluke i3000s current clamp increases the current measurement range of your Fluke digital multimeter.
The Fluke i3000s is a clamp-on AC Current Clamp for use with oscilloscopes and multimeters with banana input using the supplied Dual Banana to BNC Adapter. The clamp is optimized for measurement on power distribution systems.
Key features
- Three ranges
- 30 A
- 300 A
- 3000 A, 1, 10 or 100 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm (7 in)
- CAT III 600 V safety rating
Specifications
| Specifications |
| Nominal current range | 30 A 300 A 3000 A |
| Continuous current range | 1 A - 30 A 1 A - 300 A 1 A - 3000 A |
| Maximum Non-Destructive Current | 4000 A |
| Lowest measurable current | 1 A |
| Basic accuracy | 2% + 2 A (48-65 Hz) (% reading + floorspec) |
| Useable frequency | 10 Hz - 100 kHz |
| Output level(s) | 10 mv/A 1 mv/A 0.1 mv/A |
| Safety Specifications |
| Safety | |
| Maximum voltage | |
| Mechanical & General Specifications |
| Warranty | |
| Maximum conductor diameter | |
| Output cable length | |
| BNC Adapter | |
