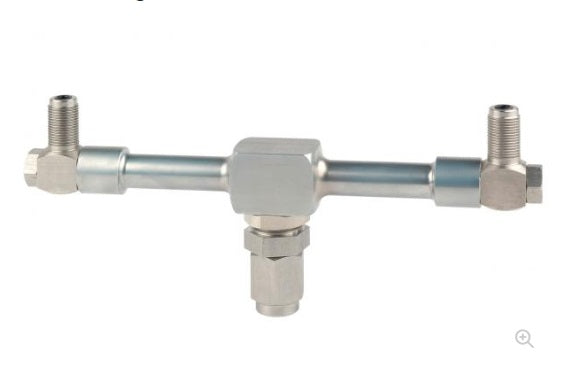

This adapter mounts directly to the test port of the calibrator and allows for the calibration of two instruments at the same time or the connection of a reference test instrument. Maximum working pressure is 10,000 psi (700 bar).
Specifications: P5544 Two Gauge Stand
Specifications |
Body Material | Brass and Stainless steel |
O-Rings | Nitrile |
Test Port Adapters | 1 set, 1/8, 1/4, 3/8 and 1/2 NPT or BSP and adapters supplied with calibrator |
Calibrator Test Connection | 1/2 BSP male (mating adapter supplied) |
Models: P5544 Two Gauge Stand
P5544
P5544 Two Gauge Stand
