Fluke I200S 200 AMP AC Current Clamp Meter with Voltage Output & BNC Connector - Professional Electrical Testing Tool for HVAC, Industrial Equipment & Power Distribution Systems
Fluke I200S 200 AMP AC Current Clamp Meter with Voltage Output & BNC Connector - Professional Electrical Testing Tool for HVAC, Industrial Equipment & Power Distribution Systems

Fluke I200S 200 AMP AC Current Clamp Meter with Voltage Output & BNC Connector - Professional Electrical Testing Tool for HVAC, Industrial Equipment & Power Distribution Systems

$367.4 $668 -45%

Free shipping on all orders over $50

7-15 days international

10 people viewing this product right now!

30-day free returns

Secure checkout

95462389

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

(item no. 664760)

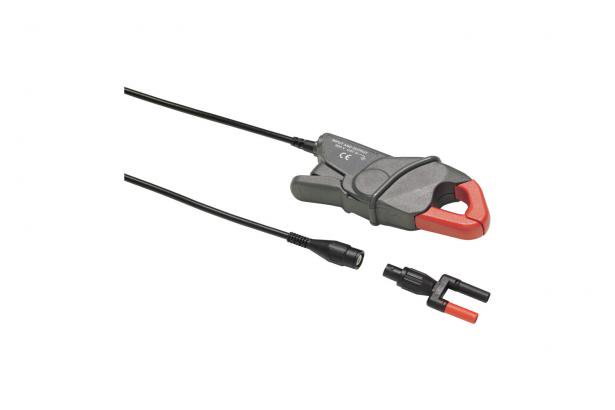

Product overview: Fluke i200s AC Current Clamp

A dual-range of 20 A and 200 A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the clamp to be connected to multimeters with banana inputs.

Features

  • Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
  • Included adapter for DMM's
  • Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
  • Take accurate current readings without breaking the circuit
  • Max. conductor Ø 20 mm
  • CAT III 600V safety rating



Specifications: Fluke i200s AC Current Clamp

Specifications
Nominal current range20 A
200 A
Continuous current range0.1 A - 24 A
0.5 A - 200 A
Maximum non-destructive240 A
Lowest measurable current0.1 A
Basic accuracy1.5% + 0.5 A
(48-65 Hz)
(% reading + floorspec)
Useable frequency40 Hz - 10 kHz
Output level(s)100 mV/A
10mV/A
Safety Specifications
SafetyCAT III, 600 V
Maximum voltage600 V AC
Mechanical and General Specifications
Warranty1 year
Maximum conductor diameter20 mm
Maximum conductor size (busbar)20 x 5 mm
Output cable length2 m
BNC AdapterYes
BNC to banana adapter
included		Yes



 Manuals
