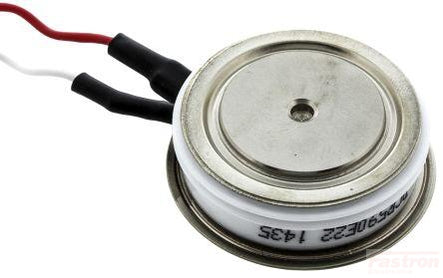

DCR1260F42 High Power Thyristor (SCR) PUK - 1260A 4200V 74/26 - Ideal for Industrial Power Control & Motor Drives
DCR1260F42 High Power Thyristor (SCR) PUK - 1260A 4200V 74/26 - Ideal for Industrial Power Control & Motor Drives

DCR1260F42 High Power Thyristor (SCR) PUK - 1260A 4200V 74/26 - Ideal for Industrial Power Control & Motor Drives

$356.95 $649 -45%

Free shipping on all orders over $50

7-15 days international

28 people viewing this product right now!

30-day free returns

Secure checkout

18611996

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Dynex DCR1260F42 Thyristor(SCR) Capsule, 1260Amp, 4200V, 74/26

Features

  • Very low forward voltage drop
  • Very low leakage current
  • International standard package
  • 74/26 Package
  • Press Mounted
  • Double or Single Sided Cooling

Applications

  • Power Supplies
  • Rectifier for drives applications
  • Uncontrolled Rectifiers
  • Rectifiers for UPS
  • Battery Chargers
  • Field Supply for DC Motors
  • Water Cooled Rectifiers
  • DC Substation Blocking Diode
  • Large Generators
    Specification
    Dynex Part NumberDCR1260F42
    Vrrm4200V
    Diode ConfigurationThyristor Capsule (PUK)
    IF(av) @ 60 Deg C1260 Amp
    Package Sizeø74 x 26mm
    Itsm16.8 kA
    VF(to)0.91V
    Tj(max)125°C
    rF0.611mΩ
    Gate TerminalsWith 400mm Gate Leads
    R th(j-c) (double sided cooled 180°sin)0.0184°C/W
    R th(c-h) (double sided cooled)0.004°C/W
    Weight600g
    Clamping Force20 - 25kN
    Factory Pack Qty6
    CertificationROHS
    Dynex HeadquartersUK

    Datasheet
