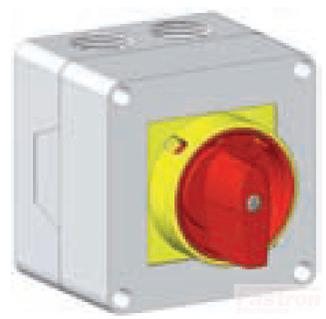

Solar Disconnect Switch, 800V, 25 Amp DC, Main Switch with Lock, Mounted in Plastic Enclosure
DC Disconnect switches are designed to be placed in between PV Solar Cells and Solar Inverter
Features :
- 2 Pole Disconnect
- Suitable for DC Isolation
Standards :
- IEC 60364-7-712
- IP65 (Front) IP20 (Terminals)
Specification
Iskra Doo Part Number | DSPV25C-21-P1 |
Functions | 2 Pole DC Disconnect Switch |
Nominal Voltage | 800VDC |
Nominal Current | 25 Amps rms |
Mounting | Outdoor Mount |
Panel Size | N/A |
Standards | IEC 60364-7-712, IP65 (Front) IP20 (Terminals)
|
Weight | 500g |
Enclosure Material | UL94 V0 |
Factory Pack Qty | 1 |
Datasheet
