CT105F 100/5 2.5/1 Class 1 Current Transformer - 2.5VA 100A to 5A Output, 3 Phase with Feet Mount for Electrical Panels & Power Monitoring Systems
CT105F 100/5 2.5/1 Class 1 Current Transformer - 2.5VA 100A to 5A Output, 3 Phase with Feet Mount for Electrical Panels & Power Monitoring Systems

CT105F 100/5 2.5/1 Class 1 Current Transformer - 2.5VA 100A to 5A Output, 3 Phase with Feet Mount for Electrical Panels & Power Monitoring Systems

$43.28 $78.7 -45%

Free shipping on all orders over $50

7-15 days international

20 people viewing this product right now!

30-day free returns

Secure checkout

45609036

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

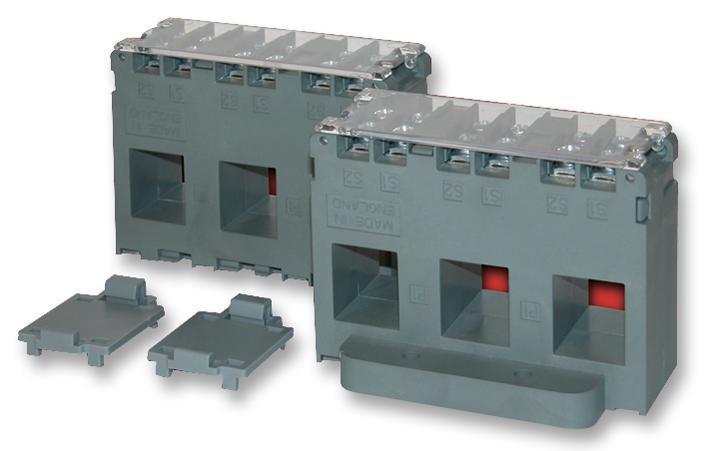

Hobut CT105F-100/5-2.5/1 Class 1, 2.5VA 100 Amp, 5 Amp Output, 3 Phase Current Transformer, With Feet Mount for MCCB Mounting

Features

  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements

    Specification
    Hobut Part NumberCT 100/5 Class 0.5 2.5VA 50/21 (30)
    TechnologyAC Current Transformer
    Ratio100/5
    Aperture Size21 x 25mm
    VA Rating2.5VA
    Accuracy ClassClass 1
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)100Amp x 1.2
    Termination StyleScrew
    Unit Weight450g
    Factory Pack Qty9
