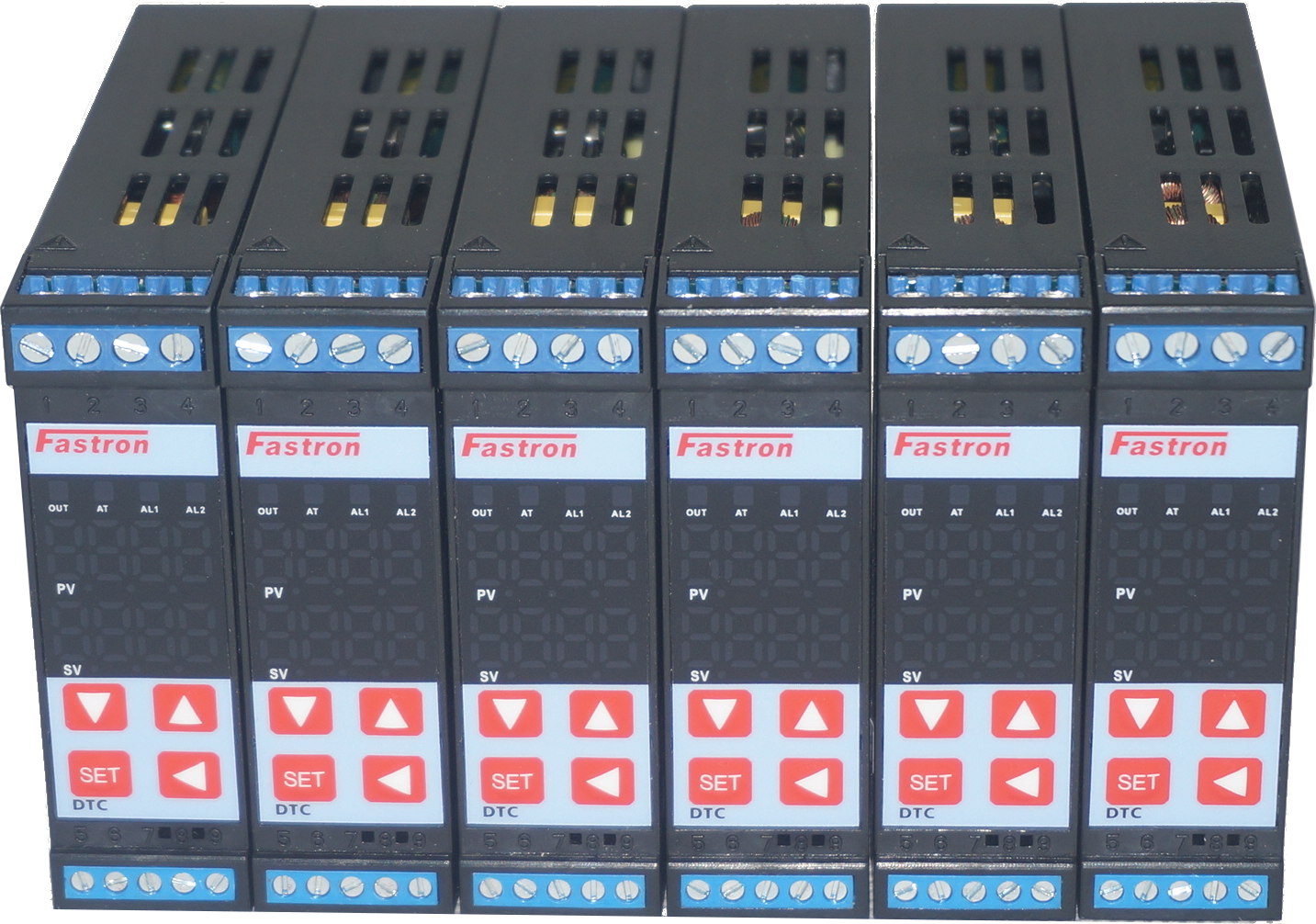

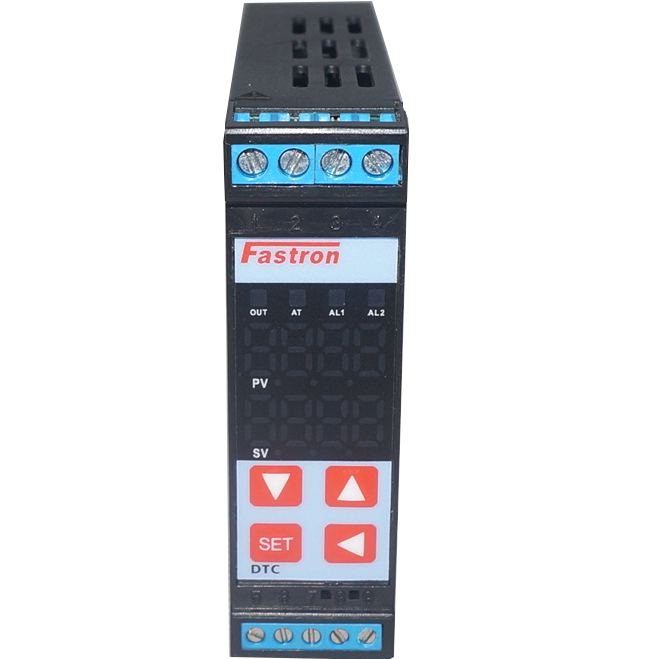

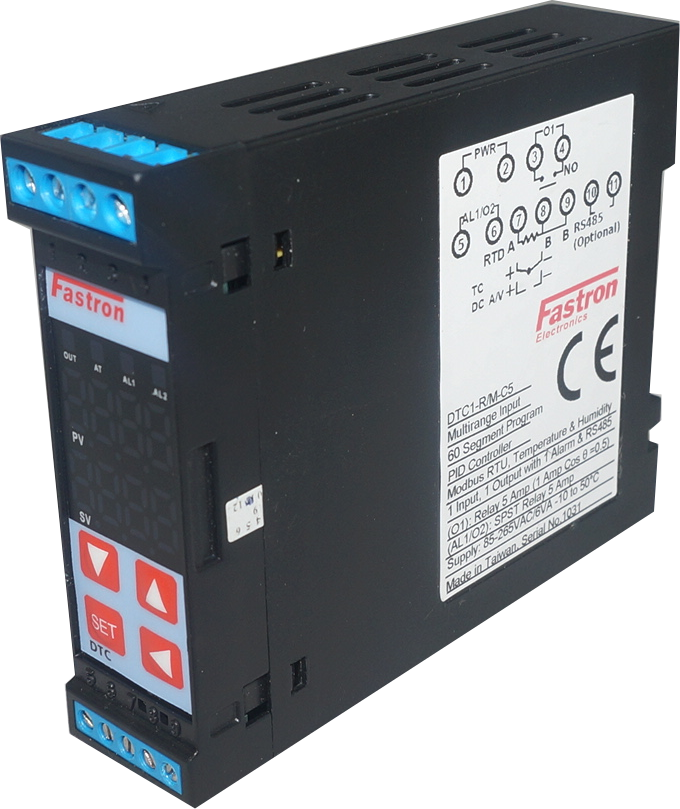

DTC1 A/M PROG DIN Rail Mount Temperature Humidity Program Controller with Multirange Input, 85-265VAC, 4-20mA Output - Ideal for HVAC, Industrial Automation, and Environmental Monitoring Systems
$125.95 $229
-45%
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
47557610
Guranteed safe checkout
DESCRIPTION
Fastron DTC1-A/M-PROG, DIN Rail Mount Temperature/Humidity Program Controller, Multirange Input, 85-265VAC, 4-20mA output
- Optional converter function
- 2 Input 1 Output, and 1 Input Two Output Versions available
- Optional 60 Segment Multi Pattern Program Control feature
- 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response)
- CE Approved
- Each unit needs just 22.5mm width Din Rail space
- EC Compliant ()
- Various specials available for unique applications.
Specification
| Fastron Part Number | DTC1-A/M-PROG |
| Control Output | 4-20mA |
| Input | Multirange K/J/R/S/B/E/T/Linear Voltage Current(Optional)/N/W1/W2/Pt100 |
| Alarm | Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC |
| Options | 60 Step Program Control |
| Mounting Style | 22.5 x 75mm Din Rail Mount |
| Supply Voltage | 85 - 265VAC |
| Termination Style | Screw |
| Weight | 230g |
| Factory Pack Qty | 1 |
| CE | Yes |
??
Selection Chart
PWM Control Wiring
