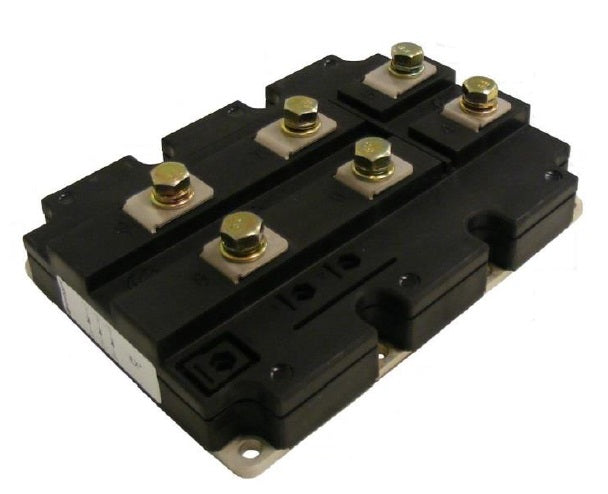

DFM1200EXM18 A000 Fast Triple Diode Module 1200A 1800V 140mm - High Power Rectifier for Industrial Motor Drives, UPS Systems & Renewable Energy Applications
DFM1200EXM18 A000 Fast Triple Diode Module 1200A 1800V 140mm - High Power Rectifier for Industrial Motor Drives, UPS Systems & Renewable Energy Applications

DFM1200EXM18 A000 Fast Triple Diode Module 1200A 1800V 140mm - High Power Rectifier for Industrial Motor Drives, UPS Systems & Renewable Energy Applications

$1097.25 $1995 -45%

Free shipping on all orders over $50

7-15 days international

13 people viewing this product right now!

30-day free returns

Secure checkout

61731666

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

DFM1200EXM18-A000, Fast Triple Diode Module, 1200 Amp, 1800V, 140mm Package

Features

  • Pressure Contact Technology
  • Electrically insulated base plate
  • Very low forward voltage drop
  • Very low leakage current
  • International standard package
  • 6000V Isolation
  • 140mm Base Width

Applications

  • Power Supplies
  • Rectifier for drives applications
  • Uncontrolled Rectifiers
  • Rectifiers for UPS
  • Battery Chargers
  • Filed Supply for DC Motors
  • DC supply for PWM inverter
    Specification
    Dynex Part NumberDFM1200EXM18-A000
    Vrrm1800V
    Diode ConfigurationFast Dual Diode Module Isolated
    IF(av)1200 Amp
    Package SizeW:140mm L:190mm D:38mm
    V(ISOL)2.5V
    Tj(max)150°C
    TerminalsM8 Bolt
    Hole Centres124mm x 171mm (M6)
    Gate TerminalsN/A
    R th(j-c) 24°C/W
    R th(c-h) 6°C/W
    Weight1.4kg
    Mounting Torque6 Nm (12 Nm Terminals)
    Factory Pack Qty2
    CertificationUL Listed, ROHS
    Dynex HeadquartersUK

    Datasheet
