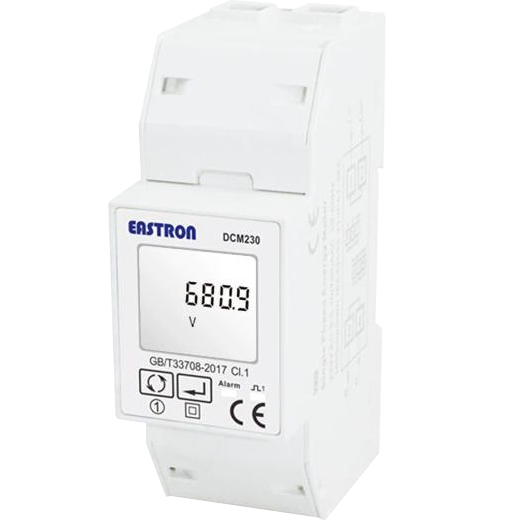

Eastron Europe DCM230 1-1-1-1 V2, DIN Rail Mount DC kWh Meter, 1000VDC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved
- 45/60/75mV Shunt Connect
- RS 485 communication up to 38,400 bit/s as standard
- 1 x Pulse Outputs (1 Configurable)
- Bidirectional Measurement
The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records DC Current and Voltage (DC Power) value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, energy, power) from the measured signals.
Features :
Accuracy class 1
- Measurement of Active and Reactive Power
- Modbus RTU communication up to 38,400 bit/s communication
- Pulse output as standard
- Graphic LCD with illumination
Specification

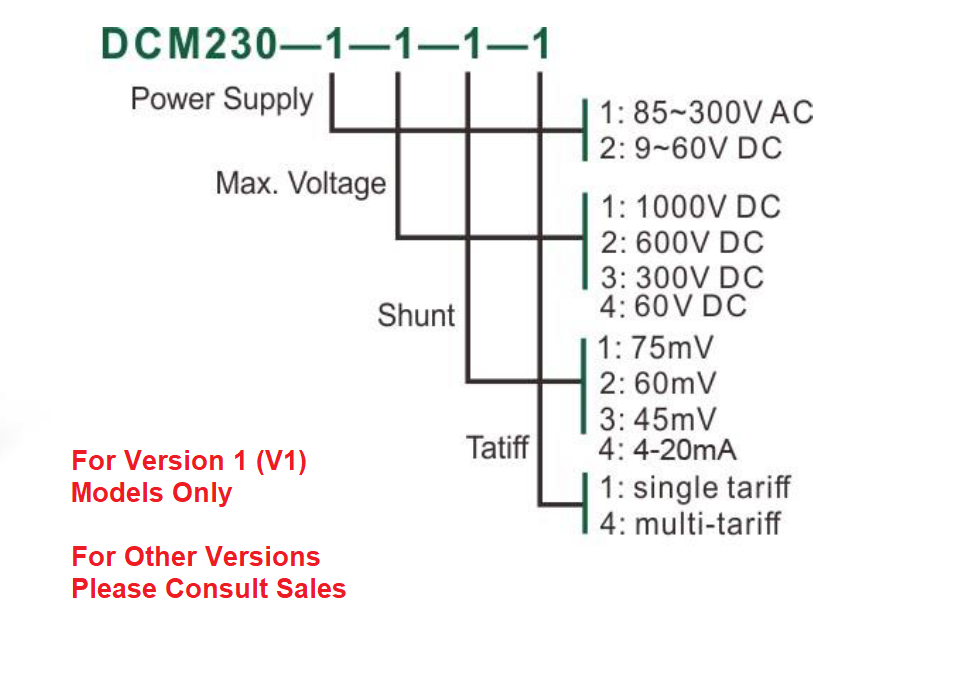

| Eastron Europe Part Number | DCM230 1-1-1-1 V2 |
| Functions | DC Energy Meter |
| Supply Voltage | 85-265VAC |
| Nominal Measurement Range | 5-300VDC,5-600VDC,5-1000VDC (See version 1
|
| Maximum Measurement Range | 5-1000VDC |
| Nominal Current Input | Shunt up to 2000Amp See our for Suitable Shunt
|
| Pulse Output | 1 x Configurable 60/100/200ms
|
| Tariff Input | N/A |
| Accuracy | Class 1 (I,U,kW,kWh) |
| Mounting | Din Rail |
| Real Time Clock | 1min/month (30ppm) |
| Internal Memory | N/A |
| Dimensions | 36mm x 100mm x 66mm (2 modules wide) |
| Isolation | 4kV |
| RS485 | 2400-38400 b/s |
| Weight | 250g |
| Certification | EN 61010-1 Installation Category III |
| Factory Pack Qty | 1 |
| Safety | IP51(Indoor) |
| Enclosure Material | Noryl with fire protection to UL94-V-O. Self extinguishing |
| Enclosure Size |
DIN 42880 4 Modules |
| Operating Temperature | -20 →+70 °C |
