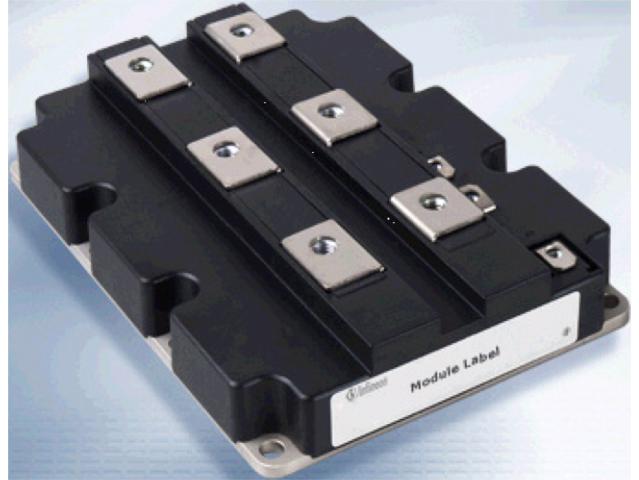

DD800S33K2C 800A 3300V Fast Dual Diode Module - 130mm Package for Industrial Power Supplies, Motor Drives & Renewable Energy Systems
DD800S33K2C 800A 3300V Fast Dual Diode Module - 130mm Package for Industrial Power Supplies, Motor Drives & Renewable Energy Systems

DD800S33K2C 800A 3300V Fast Dual Diode Module - 130mm Package for Industrial Power Supplies, Motor Drives & Renewable Energy Systems

$1647.25 $2995 -45%

Free shipping on all orders over $50

7-15 days international

24 people viewing this product right now!

30-day free returns

Secure checkout

73540435

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Infineon DD800S33K2C, Fast Dual Diode Module, 800 Amp, 3300V, 130mm Package

Features

  • Pressure Contact Technology
  • Electrically insulated base plate
  • Very low forward voltage drop
  • Very low leakage current
  • International standard package
  • 6000V Isolation
  • 130mm Base Width

Applications

  • Power Supplies
  • Rectifier for drives applications
  • Uncontrolled Rectifiers
  • Rectifiers for UPS
  • Battery Chargers
  • Filed Supply for DC Motors
  • DC supply for PWM inverter
    Specification
    Infineon Part NumberDD800S33K2C
    Vrrm3300V
    Diode ConfigurationFast Dual Diode Module Isolated
    IF(av)800 Amp
    Package SizeW:130mm L:140mm D:78mm
    V(ISOL)2.8V
    Tj(max)150°C
    rF0.34mΩ
    TerminalsM8 Bolt
    Hole Centres124mm x 61.2mm (M6)
    Gate TerminalsN/A
    R th(j-c) 26°C/W
    R th(c-h) 12°C/W
    Weight1kg
    Mounting Torque6 Nm (12 Nm Terminals)
    Factory Pack Qty2
    CertificationUL Listed, ROHS
    Infineon HeadquartersGermany

    Datasheet
