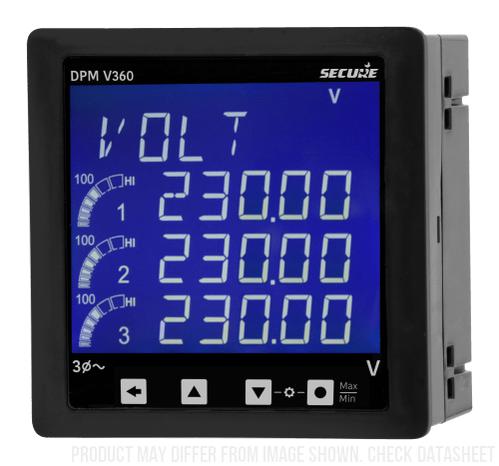

DPM96W360 2 - 96mm x 96mm LCD 3 Phase Active Power Meter, 100-500VAC, 0-6A Input, 0.5% High Accuracy, 40-300VAC/DC Supply, IP54/IP65 Rated - Perfect for Industrial Energy Monitoring, Smart Grids, and Electrical Panel Installations
DPM96W360 2 - 96mm x 96mm LCD 3 Phase Active Power Meter, 100-500VAC, 0-6A Input, 0.5% High Accuracy, 40-300VAC/DC Supply, IP54/IP65 Rated - Perfect for Industrial Energy Monitoring, Smart Grids, and Electrical Panel InstallationsDPM96W360 2 - 96mm x 96mm LCD 3 Phase Active Power Meter, 100-500VAC, 0-6A Input, 0.5% High Accuracy, 40-300VAC/DC Supply, IP54/IP65 Rated - Perfect for Industrial Energy Monitoring, Smart Grids, and Electrical Panel Installations

DPM96W360 2 - 96mm x 96mm LCD 3 Phase Active Power Meter, 100-500VAC, 0-6A Input, 0.5% High Accuracy, 40-300VAC/DC Supply, IP54/IP65 Rated - Perfect for Industrial Energy Monitoring, Smart Grids, and Electrical Panel Installations

$109.45 $199 -45%

Free shipping on all orders over $50

7-15 days international

27 people viewing this product right now!

30-day free returns

Secure checkout

75835272

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Secure Meters DPM96W360-2, 96mm x 96mm LCD Active Power Meter, 3 Phase 100-500VAC, 0-6 Amp Inputs, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)



Features

  • LCD Dual Display
  • 250mS Response Time
  • PC 94 UL V0
  • Each unit needs just 96 x 96mm Panel Space
  • 52mm Depth
  • CE Approved
  • ROHS and REACH
    Specification
    Secure Part NumberDPM96W360-2
    Frequency Range45-65 Hz
    Accuracy0.5%
    Input5/6 Amp 3 Phase CT inputs, 100-500VAC
    Over Rangex 1.5
    Operating Temperature0 - 60°C
    Supply Voltage40-300VAC/DC
    Termination StyleScrew
    Mounting Style 96 x 96mm Panel Mount
    Case MaterialPC - UL 94 V0
    Protection DegreeIP54 (IP65 Optional)
    StandardsIEC / EN 61010-1; IEC / EN 61010-2-030, IEC / EN 62053-21
    Weight450g
    Factory Pack Qty1



    Datasheet
    Manual
    Application Notes
