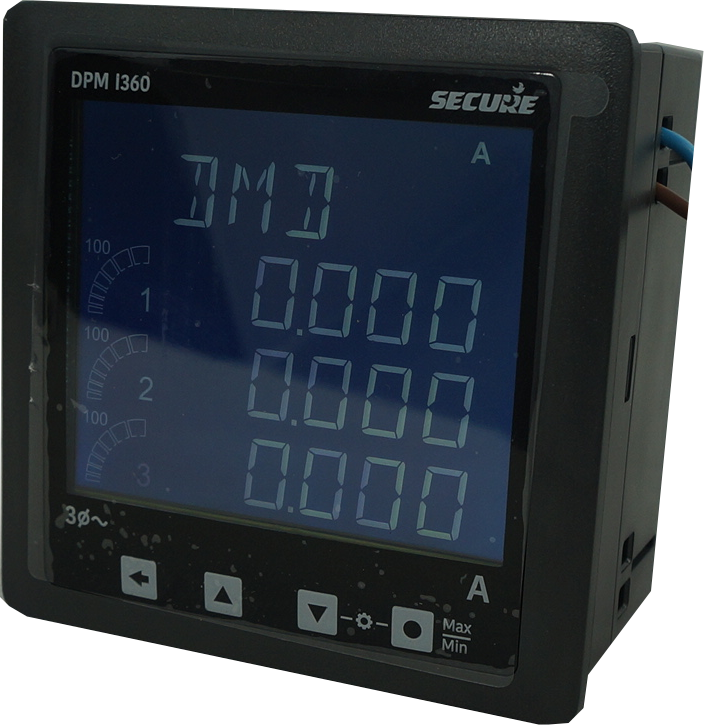

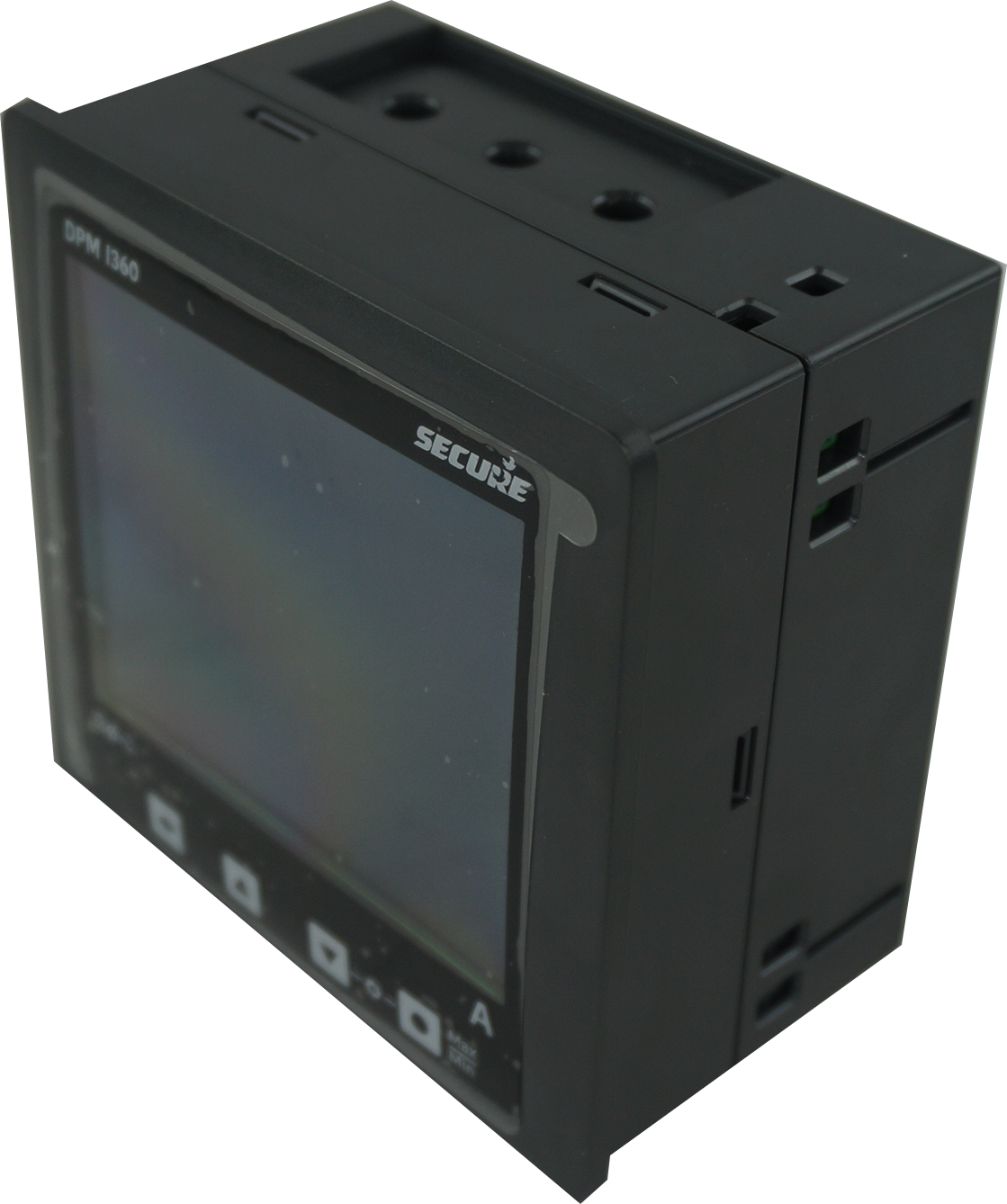

DPM96I360 2 - 96mm x 96mm LCD Digital AC Ammeter for 3 Phase (0-6 Amp CT Inputs) | High Accuracy 0.5% | 40-300VAC/DC Supply | IP54/IP65 Rated | Ideal for Industrial Power Monitoring & Electrical Panel Installations
DPM96I360 2 - 96mm x 96mm LCD Digital AC Ammeter for 3 Phase (0-6 Amp CT Inputs) | High Accuracy 0.5% | 40-300VAC/DC Supply | IP54/IP65 Rated | Ideal for Industrial Power Monitoring & Electrical Panel InstallationsDPM96I360 2 - 96mm x 96mm LCD Digital AC Ammeter for 3 Phase (0-6 Amp CT Inputs) | High Accuracy 0.5% | 40-300VAC/DC Supply | IP54/IP65 Rated | Ideal for Industrial Power Monitoring & Electrical Panel Installations

DPM96I360 2 - 96mm x 96mm LCD Digital AC Ammeter for 3 Phase (0-6 Amp CT Inputs) | High Accuracy 0.5% | 40-300VAC/DC Supply | IP54/IP65 Rated | Ideal for Industrial Power Monitoring & Electrical Panel Installations

$81.95 $149 -45%

Free shipping on all orders over $50

7-15 days international

18 people viewing this product right now!

30-day free returns

Secure checkout

88151359

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Secure Meters DPM96I360-2, 96mm x 96mm LCD Digital AC Ammeter, 3 Phase 0-6 Amp CT Inputs, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)



Features

  • LCD Dual Display
  • 250mS Response Time
  • PC 94 UL V0
  • Each unit needs just 96 x 96mm Panel Space
  • 52mm Depth
  • CE Approved
  • ROHS and REACH
    Specification
    Secure Part NumberDPM96I360-2
    Frequency Range45-65 Hz
    Accuracy0.5%
    Input0-6 Amp 3 Phase CT inputs
    Over Rangex 1.5
    Operating Temperature0 - 60°C
    Supply Voltage40-300VAC/DC
    Termination StyleScrew
    Mounting Style 96 x 96mm Panel Mount
    Case MaterialPC - UL 94 V0
    StandardsIEC / EN 61010-1; IEC / EN 61010-2-030
    Protection DegreeIP54 (IP65 Optional)
    Weight450g
    Factory Pack Qty1



    Datasheet
    Manual
    Application Notes
