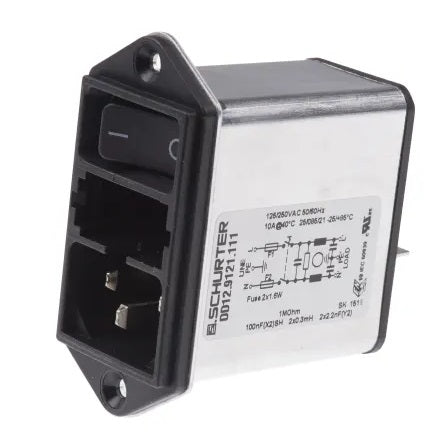

Schurter DD12.9121.111, IEC Appliance Inlet IEC-320 C14/M with Standard EMC (RFI) Line Filter, Quick Connect Terminals
Features
- Panel Mount : Screw-on mounting from front side
- 4 Functions : Appliance Inlet Protection class I, EMC Filter, Line Switch 2-pole, Fuseholder for fuse drawer 5 x 20 mm 2-pole
- Line filter in standard and medical version
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- Compact design with optimal shielding
- All single elements are already wired
- Plug removal necessary for fuse-link replacement
- Standard line filter
- With EMC-shield
- Suitable for use in equipment according to IEC/UL 60950
- Suitable for use in medical equipment according to IEC/UL 60601-1
Specification
| Schurter Part Number | DD12.9121.111 |
| Rated Voltage | 250V |
| Rated Current | 10A |
| Filter Stages | 2 Stage Higher Attenuation |
| Operating Temperature | -25°C to 85°C |
| Filter Type | Standard |
| Fuse Holder | 2 Pole |
| Line Switch | 2 Pole |
Mounting
| Panel Mount - Case 50 |
| Material | Nickel Plated Steel |
| Termination Style | C14/M to Quick Connects |
| Weight | 260g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP 40 acc. to IEC 60529 |
| Isolation | 1.7kV |
| VDE/UL/CSA/ROHS | Yes |
