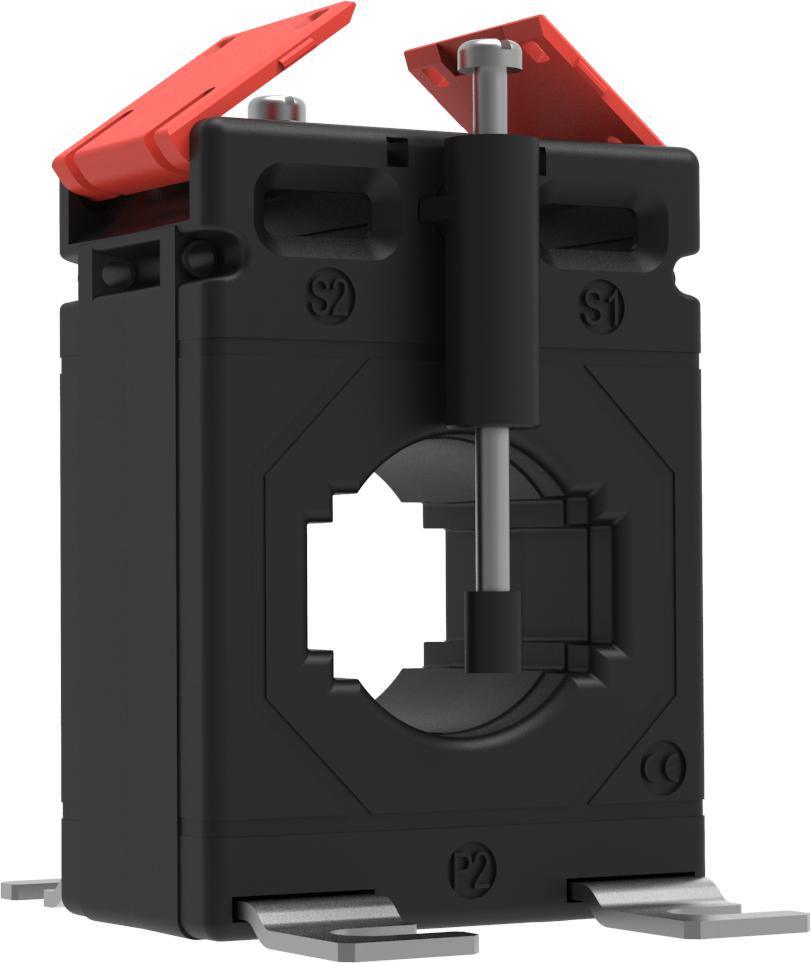

High Accuracy 300/5 Amp Current Transformer - Class 0.5, 5VA, 50/30 (30) - Perfect for Energy Monitoring, Power Metering & Industrial Electrical Systems
High Accuracy 300/5 Amp Current Transformer - Class 0.5, 5VA, 50/30 (30) - Perfect for Energy Monitoring, Power Metering & Industrial Electrical SystemsHigh Accuracy 300/5 Amp Current Transformer - Class 0.5, 5VA, 50/30 (30) - Perfect for Energy Monitoring, Power Metering & Industrial Electrical Systems

High Accuracy 300/5 Amp Current Transformer - Class 0.5, 5VA, 50/30 (30) - Perfect for Energy Monitoring, Power Metering & Industrial Electrical Systems

$17.6 $32 -45%

Free shipping on all orders over $50

7-15 days international

8 people viewing this product right now!

30-day free returns

Secure checkout

13355638

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Rishabh CT 300/5 Class 0.5 5VA 50/30 (30) 300/5 Amp Current Transformer 5VA, Class 0.5

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements

    Specification
    Rishabh Part NumberCT 300/5 Class 0.5 5VA 50/30 (30)
    TechnologyAC Current Transformer
    Ratio300/5

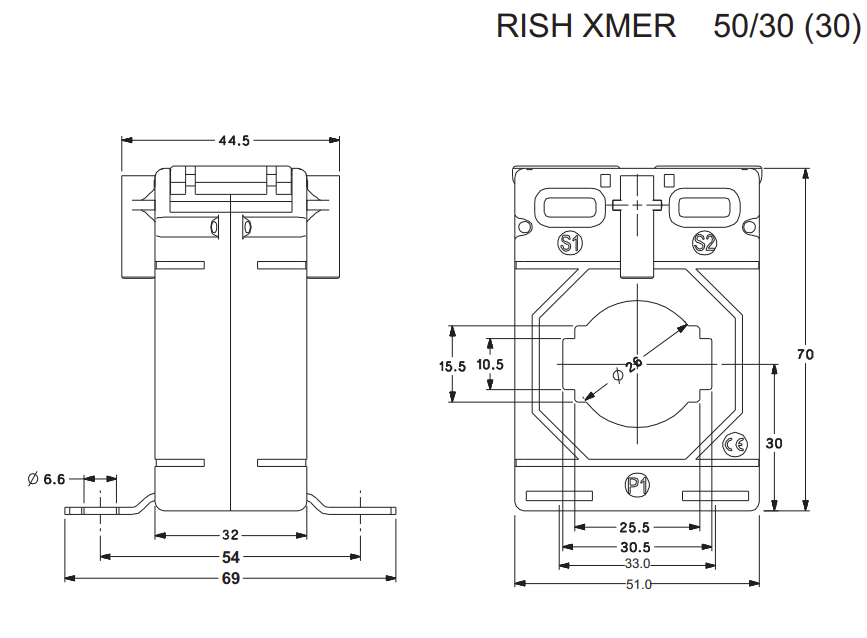

    Aperture Size⌀ 26mm or 30x10mm Busbar
    VA Rating5VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)300Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9

    Datasheet
