High Accuracy 300/5A Current Transformer - Class 0.5, 15VA High Burden, 86/40 (45) for Electrical Panels & Power Monitoring | Fits 11x41mm Busbar or Aperture | Ideal for Industrial, Commercial & Utility Metering Applications
High Accuracy 300/5A Current Transformer - Class 0.5, 15VA High Burden, 86/40 (45) for Electrical Panels & Power Monitoring | Fits 11x41mm Busbar or Aperture | Ideal for Industrial, Commercial & Utility Metering ApplicationsHigh Accuracy 300/5A Current Transformer - Class 0.5, 15VA High Burden, 86/40 (45) for Electrical Panels & Power Monitoring | Fits 11x41mm Busbar or Aperture | Ideal for Industrial, Commercial & Utility Metering Applications

High Accuracy 300/5A Current Transformer - Class 0.5, 15VA High Burden, 86/40 (45) for Electrical Panels & Power Monitoring | Fits 11x41mm Busbar or Aperture | Ideal for Industrial, Commercial & Utility Metering Applications

$36.68 $66.7 -45%

Free shipping on all orders over $50

7-15 days international

11 people viewing this product right now!

30-day free returns

Secure checkout

86208997

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

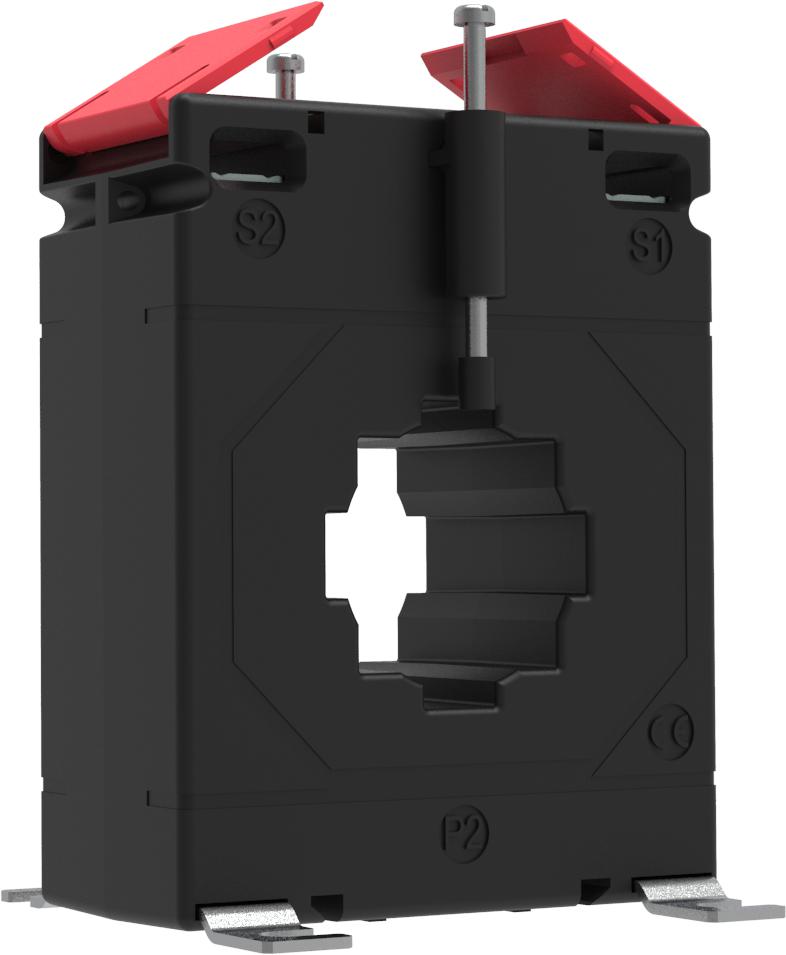

Rishabh CT 300/5 Class 0.5 15VA 86/40 (45), Current Transformer 300/5Amp CT 15VA, Class 0.5 HIGH BURDEN

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements

    Specification
    Rishabh Part NumberCT 300/5 Class 0.5 15VA 86/40 (45)
    TechnologyAC Current Transformer
    Ratio300/5

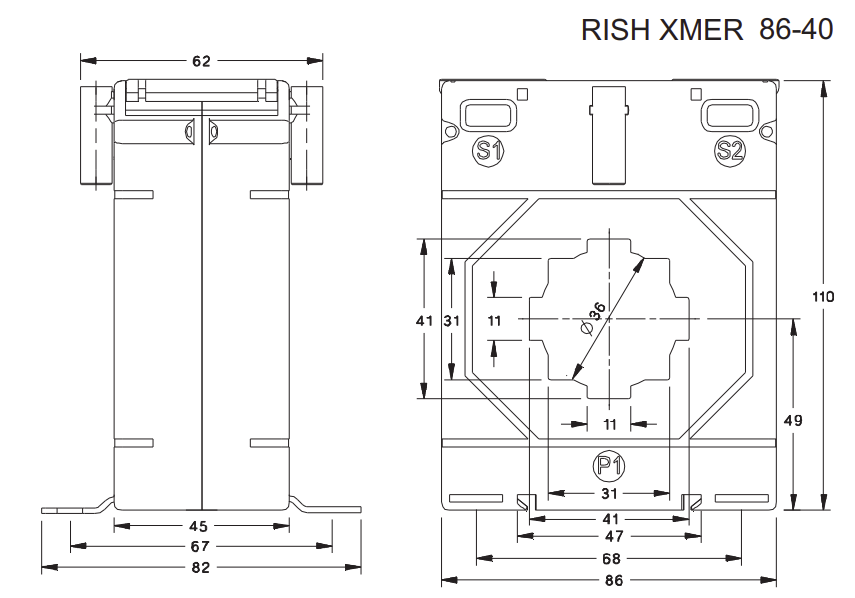

    Aperture Size36mm or 11x41mm Busbar
    VA Rating15VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Moun
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)300Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9

    Datasheet
