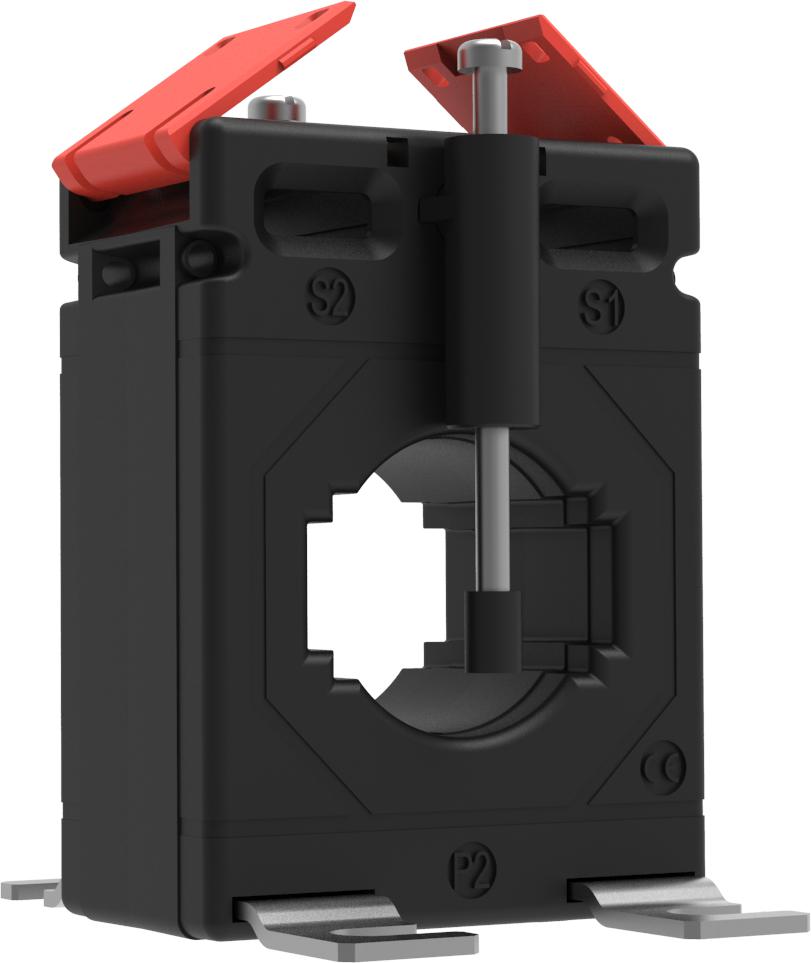

400/5A Class 0.5 Current Transformer - 5VA, 50/30 (30) Ratio - High Accuracy CT for Energy Monitoring & Electrical Metering in Industrial & Commercial Applications
400/5A Class 0.5 Current Transformer - 5VA, 50/30 (30) Ratio - High Accuracy CT for Energy Monitoring & Electrical Metering in Industrial & Commercial Applications400/5A Class 0.5 Current Transformer - 5VA, 50/30 (30) Ratio - High Accuracy CT for Energy Monitoring & Electrical Metering in Industrial & Commercial Applications

400/5A Class 0.5 Current Transformer - 5VA, 50/30 (30) Ratio - High Accuracy CT for Energy Monitoring & Electrical Metering in Industrial & Commercial Applications

$17.6 $32 -45%

Free shipping on all orders over $50

7-15 days international

22 people viewing this product right now!

30-day free returns

Secure checkout

59213246

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Rishabh CT 400/5 Class 0.5 5VA 50/30 (30), Current Transformer 400/5Amp CT 5VA, Class 0.5 Current Transformer

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements

    Specification
    Rishabh Part NumberCT 400/5 Class 0.5 5VA 50/30 (30)
    TechnologyAC Current Transformer
    Ratio400/5

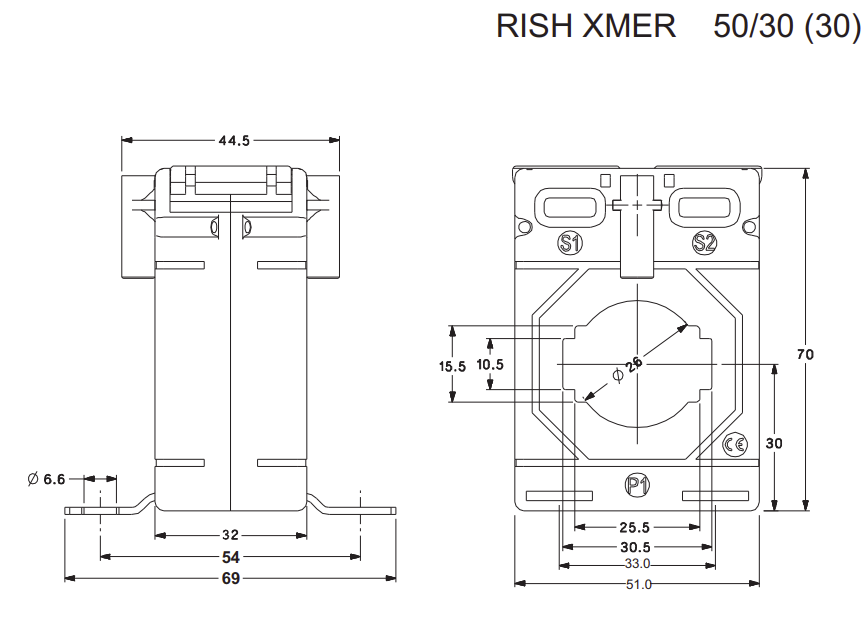

    Aperture Size28mm or 10x30mm Busbar
    VA Rating5VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)400Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9

    Datasheet
