Fluke PLS H2 Z Horizontal Red Rotary Laser Bare Tool
Product Overview

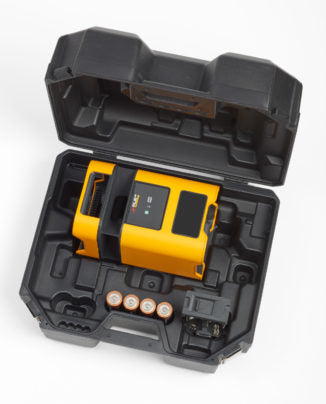

The PLS H2 Bare Tool is a red horizontal-only rotary laser level for level alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.The H2 rotary laser is ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
Features
- Red Horizontal Rotary Laser Level
- Class II Red Laser
- Self-leveling within ñ5 degrees
- One-Button Operation
- Alkaline Battery Tray.
Specifications
Rotary levels | PLS H2 | |
---|
Laser | Class II red |
---|
Laser axis | Horizontal only |
---|
Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) |
---|
Auto-leveling range | ± 5-degrees |
---|
Manual slope range | ± 5-degrees |
---|
Working range | Without XLD laser detector | ≤ 30 m (100 ft) |
---|
With XLD laser detector | ≤ 300 m (1000 ft) |
Weight | 2.89 kg (6.4 lb) |
---|
Drop test | 1 m |
---|
IP rating | IP67 |
---|
Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
---|
Battery | 4 x D Alkaline or NiMH rechargeable |
---|
Battery life | > 60 hours |
---|
Additional information
IP Rating | Product IP Rating 67 |
---|
Accuracy | 3/32" @ 100' (2.4mm @ 30m) |
---|
Batteries | 4 D Alkaline, NIMH Rechargeable |
---|
Laser Class | Class II |
---|
Operating Time | 60 hours |
---|
Self-Leveling Range | ± 5-degrees |
---|
