Fluke PLS HV2G Z Green Manual Slope Rotary Laser Level - Professional Grade for Construction, Landscaping & DIY Projects
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
33852742
DESCRIPTION
Fluke PLS HV2G Z, Manual Slope Green Rotary Laser Bare Tool

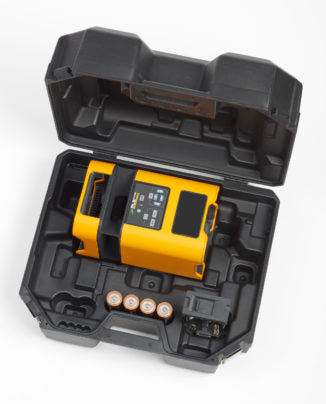

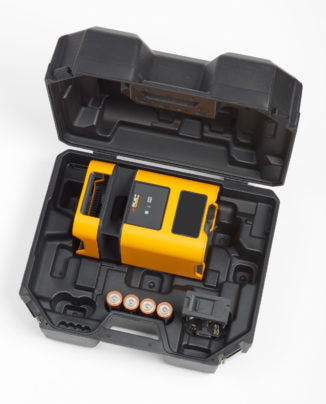

The PLS HV2G Bare Tool is a green horizontal with vertical plumb point rotary laser level for level, slope, and square alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.
Features
- Green Horizontal/Vertical Rotary Laser Level
- Class II Green Laser
- Self-leveling within ñ5 degrees
- Dual Manual Slope
- Up-Point for Layout Tasks
- Alkaline Battery Tray.
- Applications include setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation.
- HV2G comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation
- The kit includes elevating tripod and 16-foot grader.
Specifications
| Rotary levels | PLS HV2R | PLS HV2G | |
|---|---|---|---|
Laser | Class II red | Class II green | |
Laser axis | Horizontal and Vertical | Horizontal and vertical | |
Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | |
Auto-leveling range | ± 5-degrees | ± 5-degrees | |
Manual slope range | ± 5-degrees | ± 5-degrees | |
Working range | |||
Without XLD laser detector | ≤ 30 m (100 ft) | ≤ 30 m (100 ft) | |
With XLD laser detector | ≤ 300 m (1000 ft) | ≤ 300 m (1000 ft) | |
Weight | 3 kg (6.6 lb) | 3 kg (6.6 lb) | |
Drop test | 1 m | 1 m | |
IP rating | IP67 | IP67 | |
Operating | -20 °C to 50 °C (-4 °F to 122 °F) | -20 °C to 50 °C (-4 °F to 122 °F) | |
Battery | 4 x D Alkaline or NiMH rechargeable | 4 x D Alkaline or NiMH rechargeable | |
Battery life | > 60 hours | > 60 hours | |
| Accessories | PLS XLD Rotary Laser Detector | ||
Working range | 300m (1000 ft) | ||
Dimensions | 135 mm x 69 mm x 25 mm | ||
Weight | 0.19 kg (0.42 lbs) | ||
Drop test | 1 m | ||
IP rating | IP67 | ||
Operating | -20 °C to 50 °C (-4 °F to 122 °F) | ||
Battery | 1 x AA Alkaline | ||
Battery life | > 50 hours | ||
Visible spectrum | 450 nm – 800 nm | ||
Accuracy | |||
Fine | 1 mm (0.05 in) | ||
Medium | 2 mm (0.1 in) | ||
Coarse | 5 mm (0.2 in) | ||
Additional information
| Accuracy | 3/32" @ 100' (2.4mm @ 30m) |
|---|---|
| Batteries | 4 D Alkaline, NIMH Rechargeable |
| Laser Class | Class II |
| IP Rating | Product IP Rating 67 |
| Operating Time | 60 hours |
