High Accuracy CT 250/5 Class 0.5 15VA 50/21 (50) Current Transformer for Electrical Metering & Power Monitoring in Industrial Applications
High Accuracy CT 250/5 Class 0.5 15VA 50/21 (50) Current Transformer for Electrical Metering & Power Monitoring in Industrial ApplicationsHigh Accuracy CT 250/5 Class 0.5 15VA 50/21 (50) Current Transformer for Electrical Metering & Power Monitoring in Industrial Applications

High Accuracy CT 250/5 Class 0.5 15VA 50/21 (50) Current Transformer for Electrical Metering & Power Monitoring in Industrial Applications

$26.95 $49 -45%

Free shipping on all orders over $50

7-15 days international

10 people viewing this product right now!

30-day free returns

Secure checkout

16145799

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

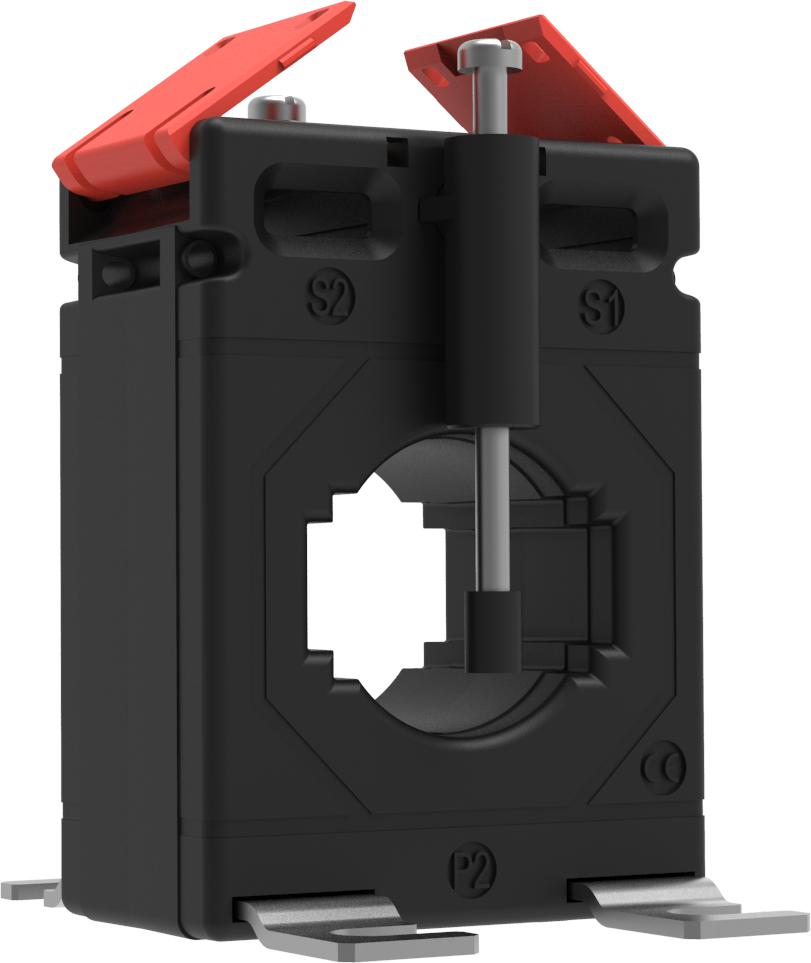

Rishabh CT 250/5 Class 0.5 15VA 50/21 (50) Current Transformer

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements

    Specification
    Rishabh Part NumberCT 250/5 Class 0.5 15VA 50/21 (50)
    TechnologyAC Current Transformer
    Ratio250/5

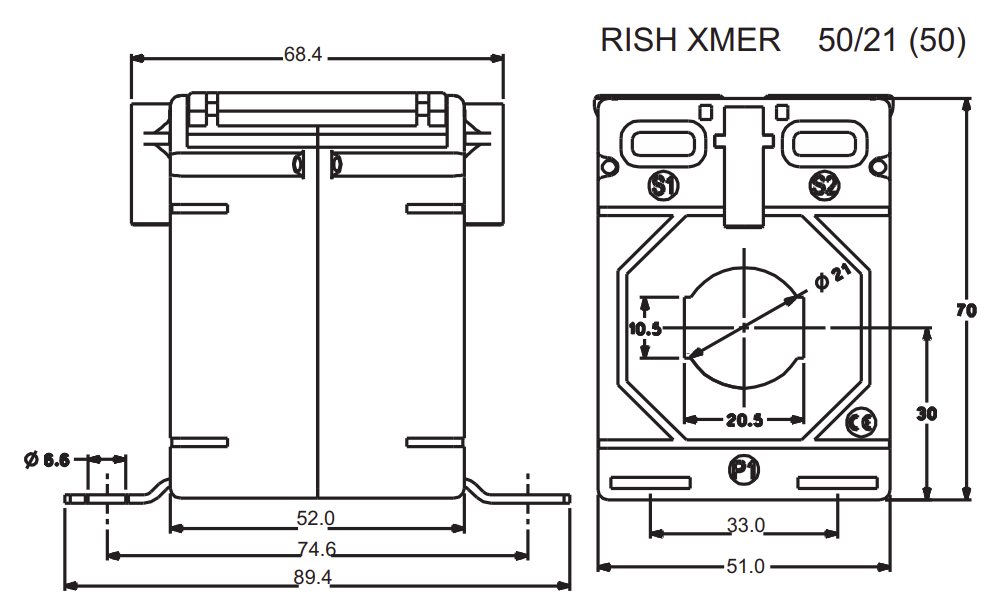

    Aperture Size⌀ 21mm or 20x10mm Busbar
    VA Rating15VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)250Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9

    Datasheet
