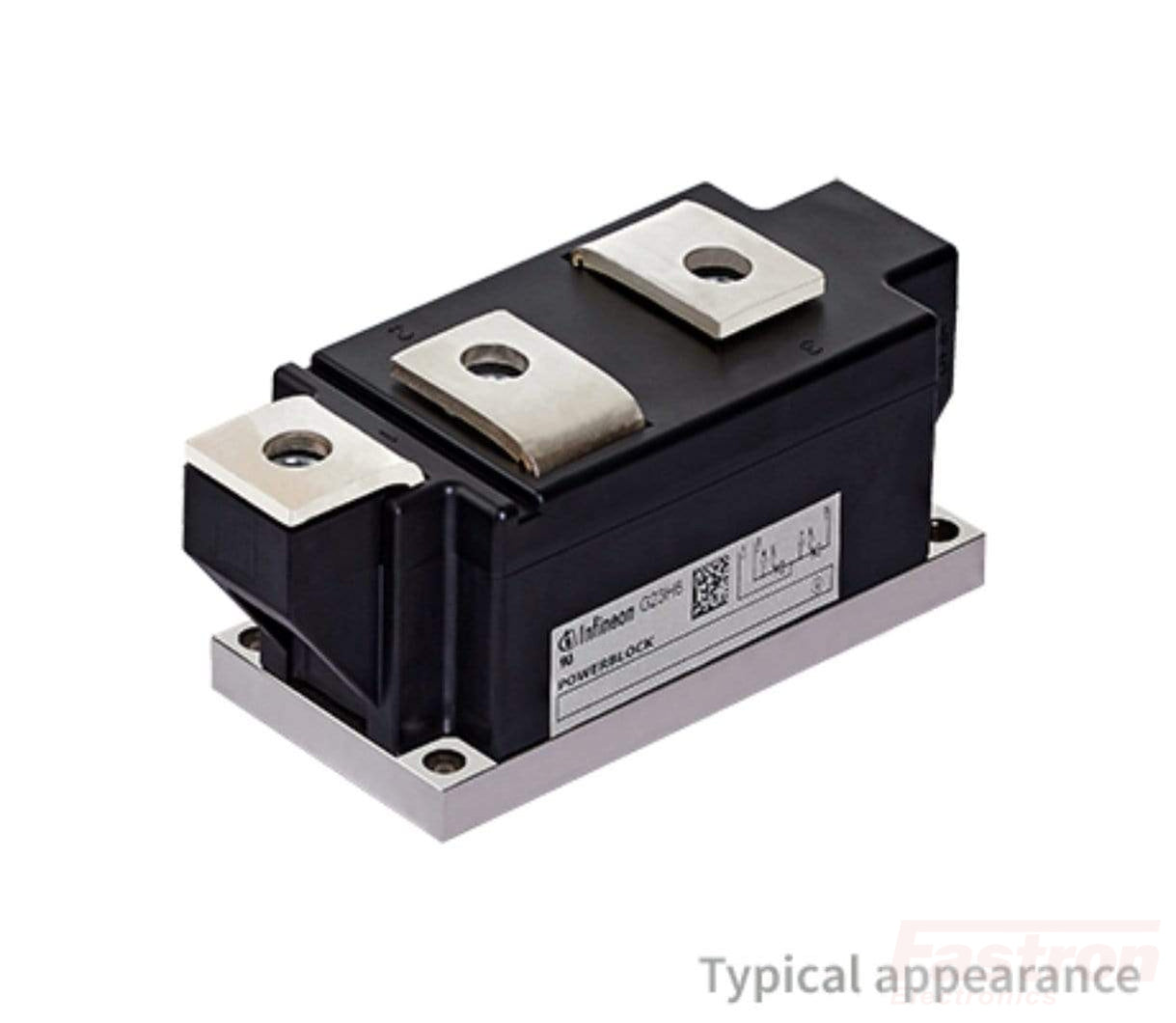

Infineon DD260N16K, Dual Diode Module, 260 Amp, 1600V
Features
- Pressure Contact Technology
- Electrically insulated base plate
- Very low forward voltage drop
- Very low leakage current
- Planar passivated chips
- International standard package
- 3600V Isolation
- 50mm Base Width
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Rectifiers for UPS
- Battery Chargers
- Filed Supply for DC Motors
- DC supply for PWM inverter
Specification
| Infineon Part Number | DD260N12K |
| Vrrm | 1200V |
| Diode Configuration | Dual Diode Module |
| IF(av) @ 100 Deg C | 260 Amp |
| Package Size | W:50mm L:115mm D:52mm |
| Itsm | 9.5 kA |
| VF(to) | 0.7V |
| Tj(max) | 150°C |
| rF | 0.68mΩ |
| Terminals | M8 Bolt |
| Hole Centres | 80mm x 38mm (M6) |
| Gate Terminals | N/A |
| R th(j-c) | 0.17°C/W |
| R th(c-h) | 0.04°C/W |
| Weight | 800g |
| Mounting Torque | 5 Nm (12 Nm Terminals) |
| Factory Pack Qty | 6 |
| Certification | UL Listed, ROHS |
| Infineon Headquarters | Germany |
Datasheet
Alternatives
See for alternative IXYS solder contact alternative
