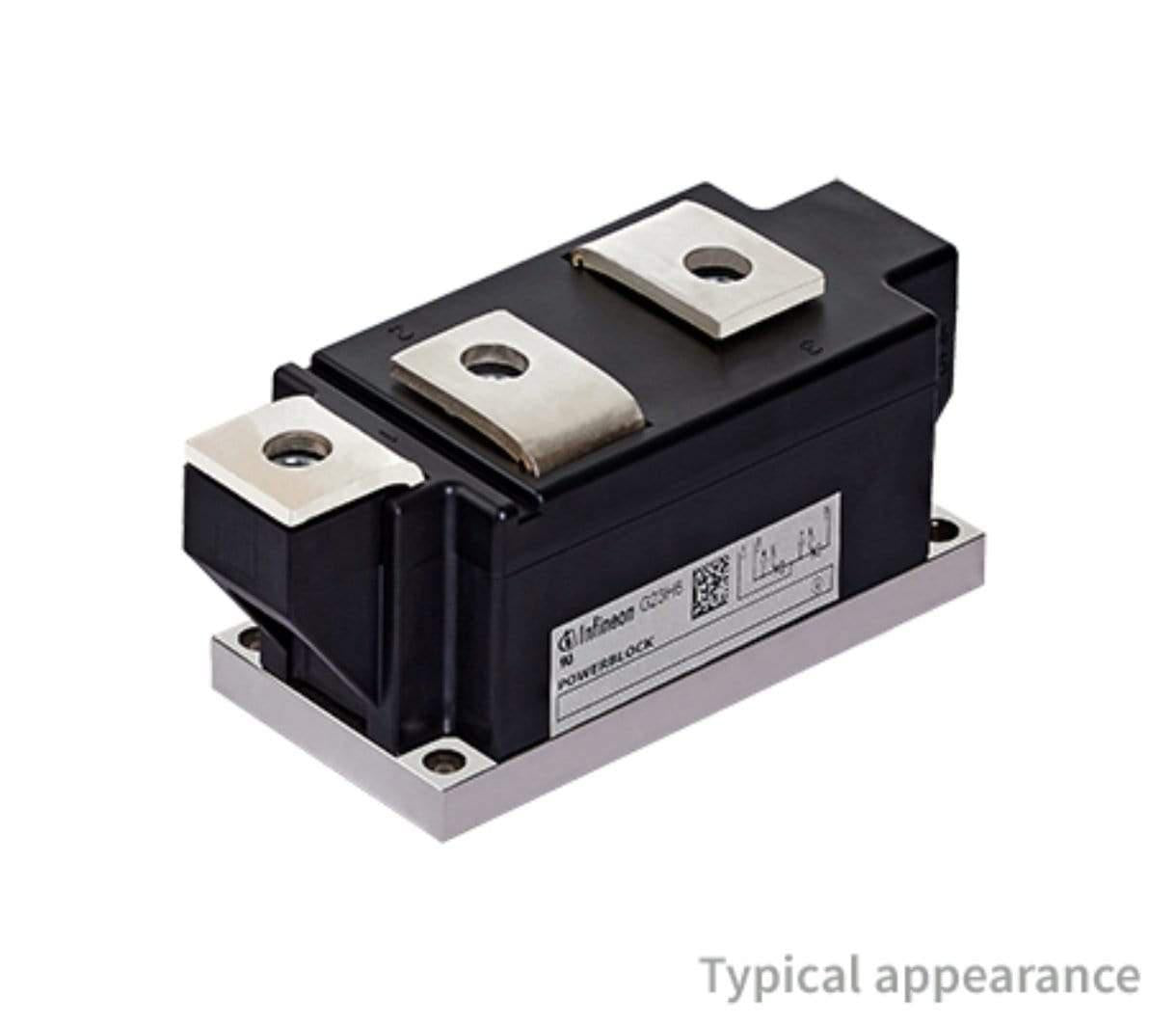

DD350N12K K Dual Diode Module - Common Cathode 350 Amp 1200V for Industrial Power Supplies, Motor Drives & Renewable Energy Systems
DD350N12K K Dual Diode Module - Common Cathode 350 Amp 1200V for Industrial Power Supplies, Motor Drives & Renewable Energy Systems

DD350N12K K Dual Diode Module - Common Cathode 350 Amp 1200V for Industrial Power Supplies, Motor Drives & Renewable Energy Systems

$153.45 $279 -45%

Free shipping on all orders over $50

7-15 days international

10 people viewing this product right now!

30-day free returns

Secure checkout

50744208

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Infineon DD350N12K-K, Dual Diode Module, Common Cathode, 350 Amp, 1200V

Features

  • Pressure Contact Technology
  • Electrically insulated base plate
  • Very low forward voltage drop
  • Very low leakage current
  • Planar passivated chips
  • International standard package
  • 3600V Isolation
  • 50mm Base Width

Applications

  • Power Supplies
  • Rectifier for drives applications
  • Uncontrolled Rectifiers
  • Rectifiers for UPS
  • Battery Chargers
  • Filed Supply for DC Motors
  • DC supply for PWM inverter
    Specification
    Infineon Part NumberDD350N12K-K
    Vrrm1200V
    Diode ConfigurationCommon Cathode Dual Diode Module
    IF(av) @ 85 Deg C350 Amp
    Package SizeW:50mm L:115mm D:52mm
    Itsm9.5 kA
    VF(to)0.7V
    Tj(max)150°C
    rF0.68mΩ
    TerminalsM8 Bolt
    Hole Centres80mm x 38mm (M6)
    Gate TerminalsN/A
    R th(j-c) 0.17°C/W
    R th(c-h) 0.04°C/W
    Weight800g
    Mounting Torque5 Nm (12 Nm Terminals)
    Factory Pack Qty6
    CertificationUL Listed, ROHS
    Infineon HeadquartersGermany

    Datasheet
    Alternatives

    for urgent replacement advice
