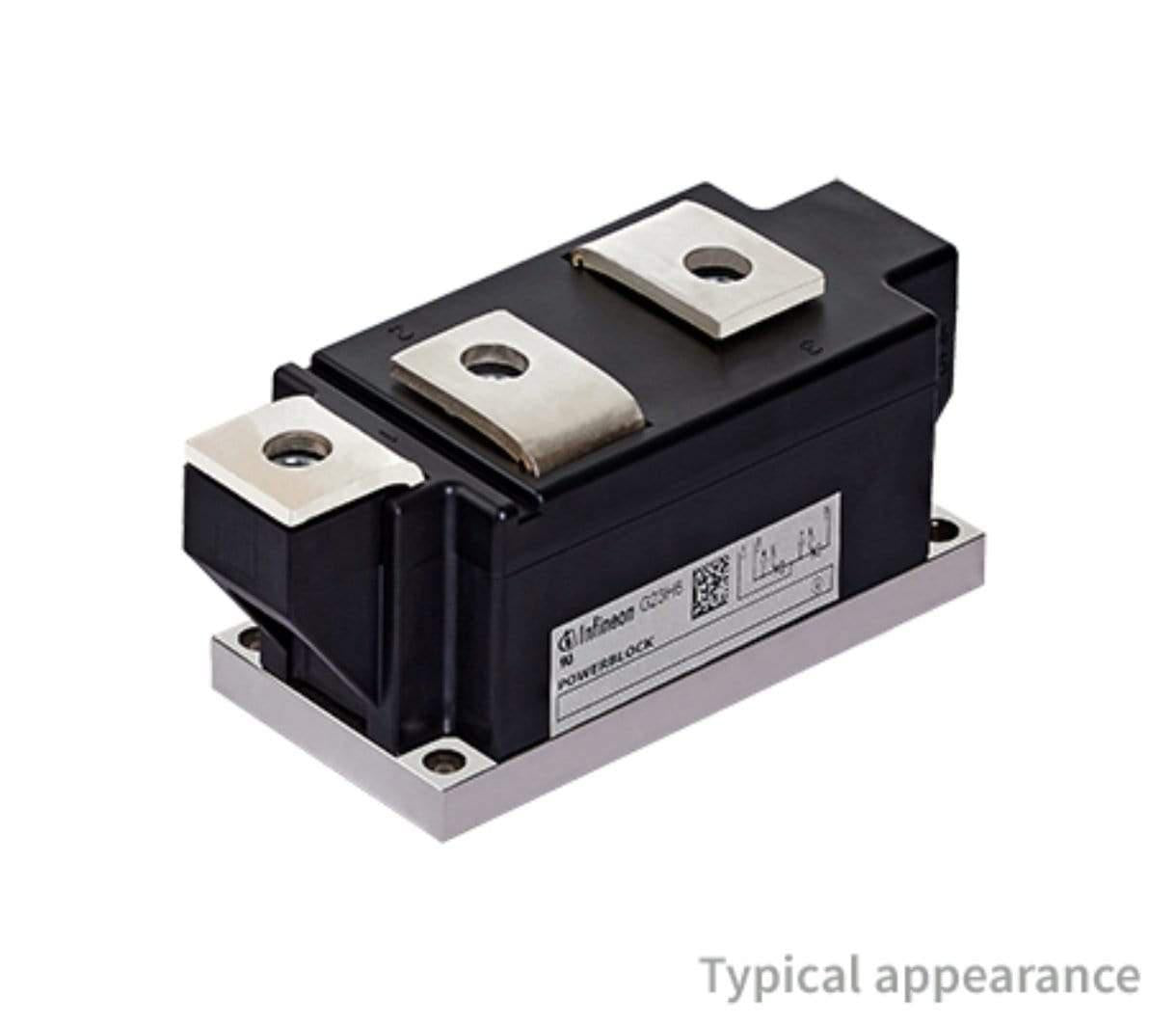

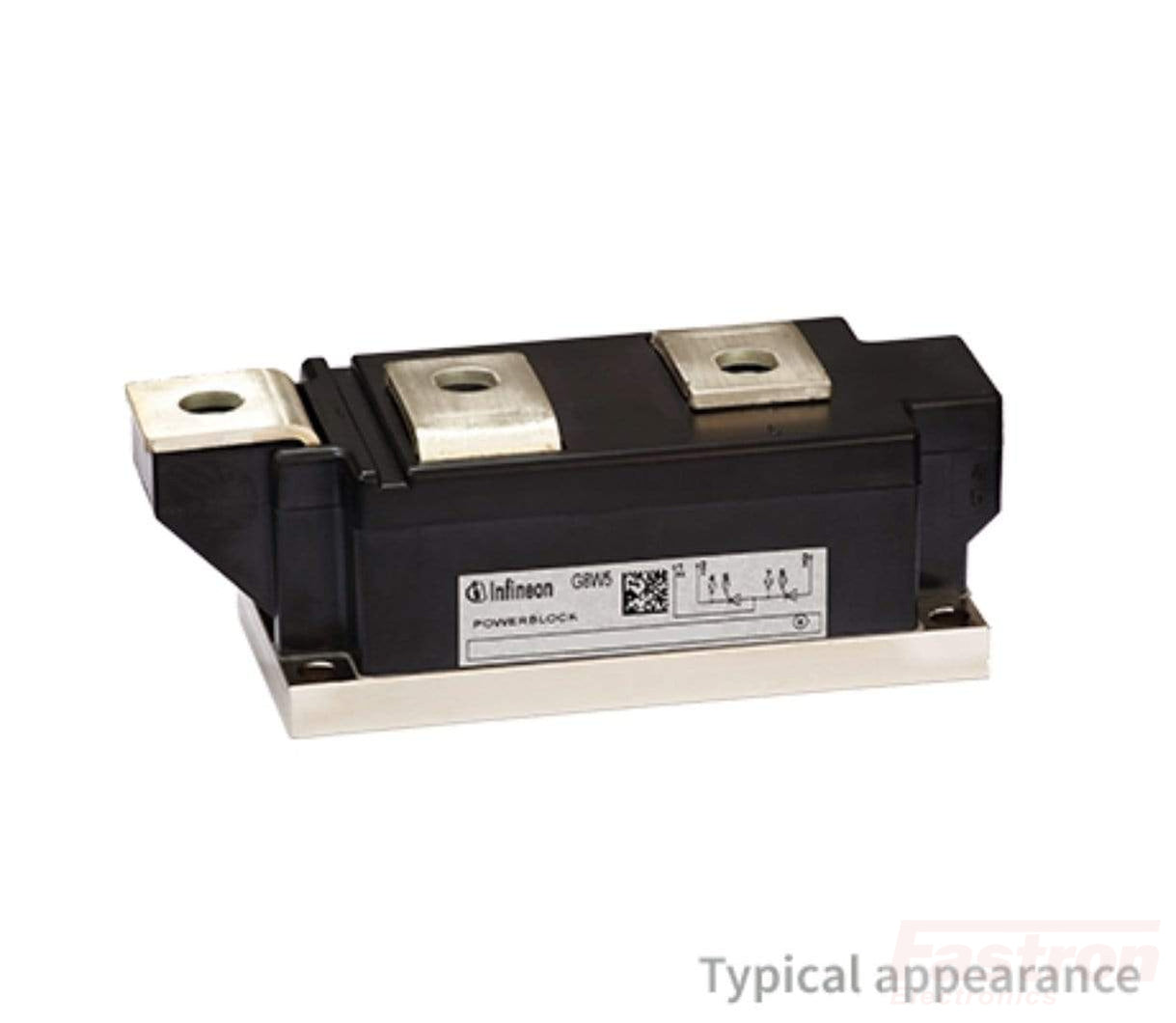

Infineon DD700N22K Dual Diode Module
Features
- Pressure Contact Technology
- Electrically insulated base plate
- Very low forward voltage drop
- Very low leakage current
- International standard package
- 3600V Isolation
- 60mm Base Width
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Rectifiers for UPS
- Battery Chargers
- Filed Supply for DC Motors
- DC supply for PWM inverter
Specification
Infineon Part Number | DD700N22K |
Vrrm | 2200V |
Diode Configuration | Dual Diode Module |
IF(av) @ 100 Deg C | 700 Amp |
Package Size | W:60mm L:144mm D:52mm |
Itsm | 22 kA |
VF(to) | 0.78V |
Tj(max) | 150°C |
rF | 0.185mΩ |
Terminals | M10 Bolt |
Hole Centres | 80mm x 48mm (M6) |
Gate Terminals | N/A |
R th(j-c) | 0.065°C/W |
R th(c-h) | 0.062°C/W |
Weight | 800g |
Mounting Torque | 6 Nm (12 Nm Terminals) |
Factory Pack Qty | 3 |
Certification | UL Listed, ROHS |
Infineon Headquarters | Germany |
Datasheet
Alternatives
See for possible alternative
