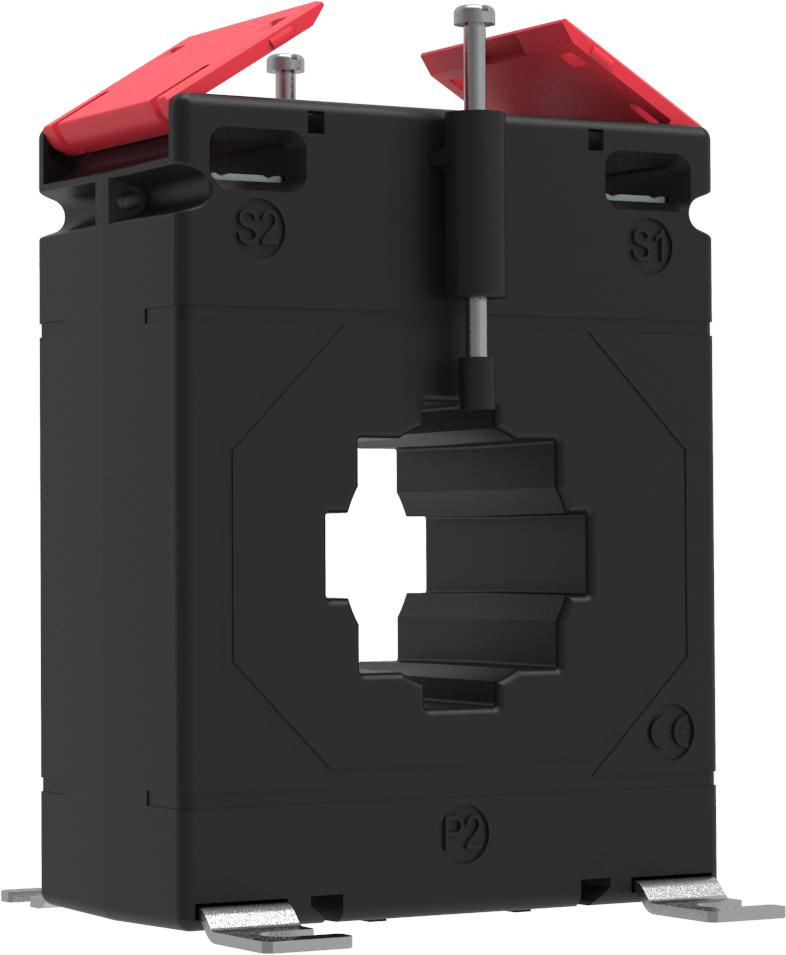

High Accuracy CT 50/5 Class 1 1.5VA Current Transformer - 300/5Amp, 36mm Aperture or 11x45mm Busbar Compatible - Perfect for Electrical Metering, Energy Monitoring, and Power Distribution Systems
High Accuracy CT 50/5 Class 1 1.5VA Current Transformer - 300/5Amp, 36mm Aperture or 11x45mm Busbar Compatible - Perfect for Electrical Metering, Energy Monitoring, and Power Distribution SystemsHigh Accuracy CT 50/5 Class 1 1.5VA Current Transformer - 300/5Amp, 36mm Aperture or 11x45mm Busbar Compatible - Perfect for Electrical Metering, Energy Monitoring, and Power Distribution Systems

High Accuracy CT 50/5 Class 1 1.5VA Current Transformer - 300/5Amp, 36mm Aperture or 11x45mm Busbar Compatible - Perfect for Electrical Metering, Energy Monitoring, and Power Distribution Systems

$36.68 $66.7 -45%

Free shipping on all orders over $50

7-15 days international

8 people viewing this product right now!

30-day free returns

Secure checkout

18234085

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Rishabh CT 50/5 Class 1 1.5VA 86/40 (45), Current Transformer 300/5Amp CT 1.5VA WIDE APERTURE, Class 0.5, 36mm Aperture or 11x45mm Busbar

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Rishabh Part NumberCT 50/5 Class 1 1.5VA 86/40 (45)
    TechnologyAC Current Transformer
    Ratio50/5
    Aperture Size36mm or 11x41mm Busbar
    VA Rating1.5VA
    Accuracy ClassClass 1
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)50Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9



    Datasheet
