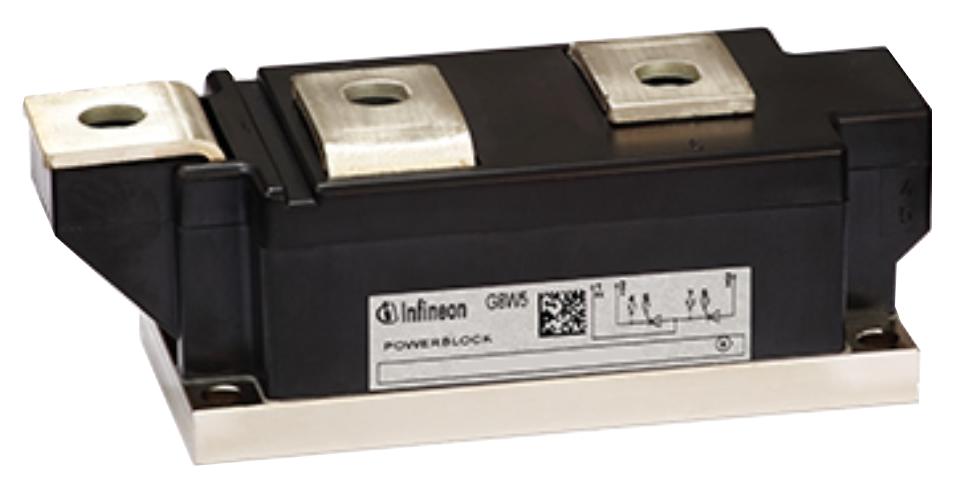

Infineon DD600N12K, Dual Diode Module, 600 Amp, 1200V, 60mm Base
Features
- Pressure Contact Technology
- Electrically insulated base plate
- Very low forward voltage drop
- Very low leakage current
- Planar passivated chips
- International standard package
- 3600V Isolation
- 60mm Base Width
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Rectifiers for UPS
- Battery Chargers
- Filed Supply for DC Motors
- DC supply for PWM inverter
Specification
Infineon Part Number | DD600N12K |
Vrrm | 1200V |
Diode Configuration | Dual Diode Module |
IF(av) @ 100 Deg C | 600 Amp |
Package Size | W:60mm L:101mm D:52mm |
Itsm | 22 kA |
VF(to) | 0.75V |
Tj(max) | 150°C |
rF | 0.215mΩ |
Terminals | M10 Bolt |
Hole Centres | 80mm x 38mm (M6) |
Gate Terminals | N/A |
R th(j-c) | 0.078°C/W |
R th(c-h) | 0.02°C/W |
Weight | 900g |
Mounting Torque | 5 Nm (12 Nm Terminals) |
Factory Pack Qty | 2 |
Certification | UL Listed, ROHS |
IXYS Headquarters | United States |
