Product overview

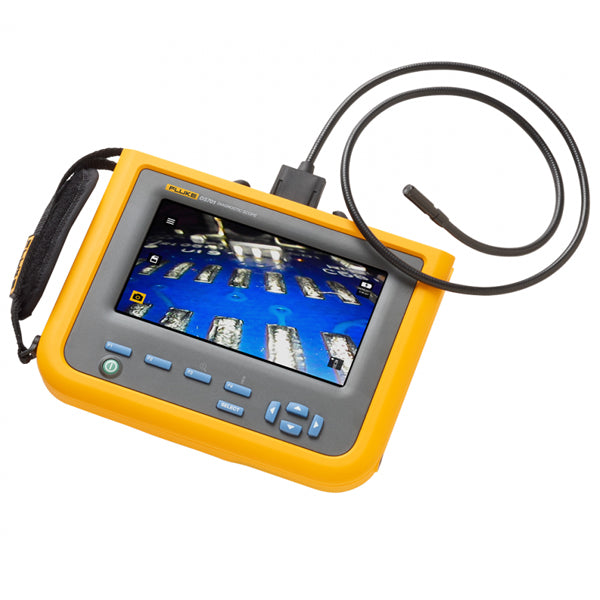

Diagnostic scope with 7” LCD screen for accurate inspections in difficult to reach spaces. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe. Intuitive user interface with easy to navigate button technology.

Expand the flexibility of your videoscope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM and probes as long as 20 meters. Equip yourself the right probe for your environment.

Features

High definition probe with dual-view camera
Processing speeds that render a smooth, clear, consistent image
7” LCD screen for easy viewing
Macro to micro zoom function
Adjustable lighting to capture the best image
Up is Up® technology for an appropriate orientation, regardless of the probe location

Specifications: Fluke DS701 Diagnostic Scope

Videoscope probe
Length		1.2 meter (3.94 feet)
Type		Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth
Diameter		8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available
Material		Elastomer coated steel
Lighting		Adjustable LED, on front, one side
Illumination		53 Lux
Up is Up™ Technology		Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only

Camera
Dual view camera, forward and side
Resolution		800 x 600 (480,000 pixels)
Still image format		JPG
Video Recording Format		AVI
Video Output Format		MPEG compression
Digital zoom		Adjustable from 1x to 8x zoom
Field of view		68°
Depth of field		25 mm to infinity
Video resolution		Standard
Minimum focus distance		10 mm
Focus Type		Fixed
Rotation		180°
Streaming video		N/A

LCD Screen
Touch Screen		N/A
Size		7 inch (17.79 cm)
Refresh rate		30 hz
Up is Up™ technology		Real-time upright adjustment for image
LED backlight		Adjust display brightness for optimal viewing

Communication
Wireless Interface		N/A
Data Transfer		USB
Fluke Connect™		N/A
Instant upload to the cloud		N/A

General Features
Color palettes		Visible light, grayscale or inverted
Internal memory		6 GB
Physical buttons		Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button
Carrying case		Protective EVA case
Strap		Hand strap
Power adapter		AC adapter/battery charger input
Battery		6400mAh 3.7 volt rechargeable internal li-ion battery
Battery life		3 hours at 50 % LED brightness
Dimensions		6.98 x 8.85 inches (17.73 x 22.48 cm)
Weight		1.95 lbs (0.88 Kg)

IP Rating
Tablet		IP54, dust protected and protected against water projected from a nozzle
Probe		IP68, dust tight and immersion of 1 meter or more depth
Drop Test		2 meter (6.56 feet)
Operating temperature		0 °C to 45 °C (32 °F to 113 °F), 50 °C (113 °F) for less than 10 minutes
Storage temperature		-40 °C to 60 °C (-40 °F to 140 °F)
Operating humidity		90 % at 35 °C (95 °F) 75 % at 40 °C (104 °F) 45 % at 50 °C (122 °F)
Warranty		2 years

Probe Accessories Specifications

Probe	Views	Up-is-Up	DS701-Display resolution	DS703-Display Resolution	Imager Resolution
Standard Probe. 8.5mm 1.2M	Dual	Yes	800 X 600	1200 X 720	1280 x 720
3.8mm , 1M	Forward	X	800 X 600	1200 X 720	720 x 488
8.5mm, 3M	Dual	Yes	800 X 600	1200 X 720	1280 x 720
5.5mm, 1M	Dual	X	800 X 600	1200 X 720	640 x 480
8.5mm UV, 1M	Dual	X	800 X 600	1200 X 720	1280 x 720
9mm, 20M	Forward	X	800 X 600	1200 X 720	720 x 488

Resources: Fluke DS701 Diagnostic Scope

Manuals

Brochures

Data Sheet

Application Note
