DESCRIPTION

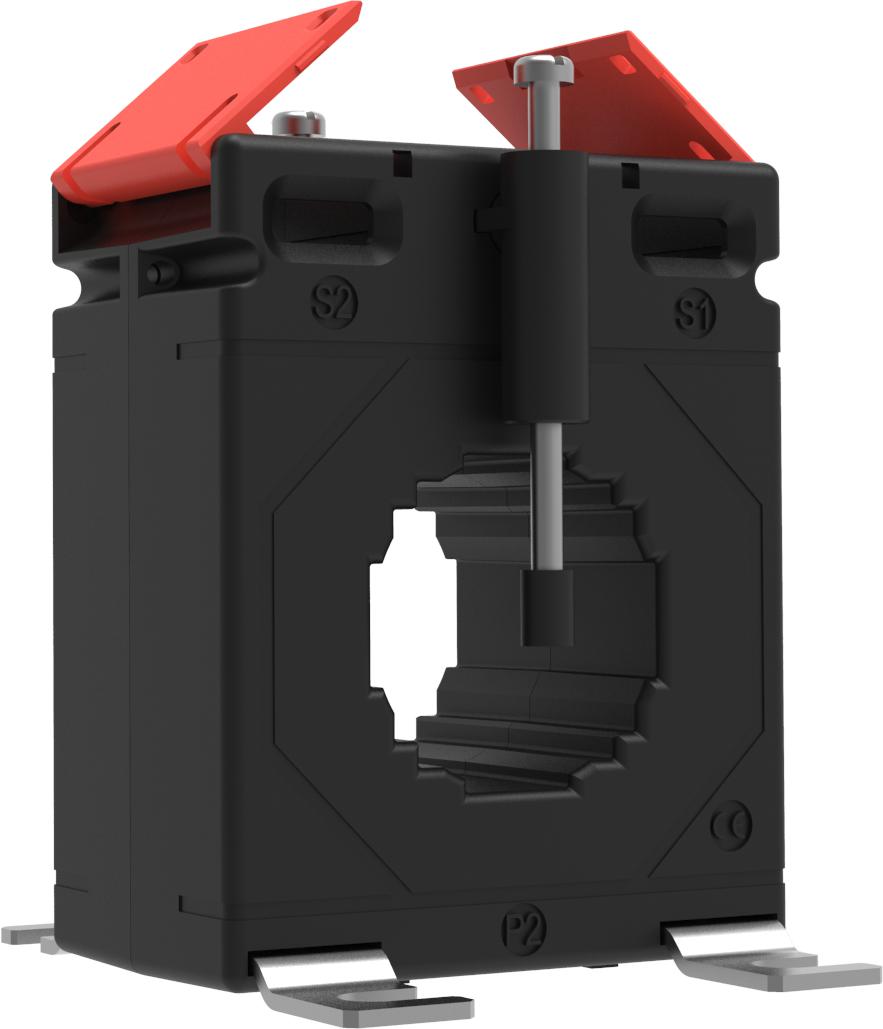

Rishabh CT 500/5 Class 1 30VA 62/30 (50), Current Transformer 500/5Amp CT 30VA HIGH BURDEN

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Rishabh Part NumberCT 500/5 Class 1 15VA 62/30 (50)
    TechnologyAC Current Transformer
    Ratio500/5
    Aperture Size31mm or 11x40mm Busbar
    VA Rating30VA
    Accuracy ClassClass 1
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)500Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9



    Datasheet
