200/5A Class 0.5 Current Transformer - 10VA 62/30 (50) - 28mm Aperture or 10x30mm Busbar - High Accuracy CT for Electrical Panels, Energy Meters & Power Monitoring Systems
200/5A Class 0.5 Current Transformer - 10VA 62/30 (50) - 28mm Aperture or 10x30mm Busbar - High Accuracy CT for Electrical Panels, Energy Meters & Power Monitoring Systems200/5A Class 0.5 Current Transformer - 10VA 62/30 (50) - 28mm Aperture or 10x30mm Busbar - High Accuracy CT for Electrical Panels, Energy Meters & Power Monitoring Systems

200/5A Class 0.5 Current Transformer - 10VA 62/30 (50) - 28mm Aperture or 10x30mm Busbar - High Accuracy CT for Electrical Panels, Energy Meters & Power Monitoring Systems

$24.75 $45 -45%

Free shipping on all orders over $50

7-15 days international

17 people viewing this product right now!

30-day free returns

Secure checkout

56208065

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Rishabh CT 200/5 Class 0.5 10VA 62/30 (50), Current Transformer 200/5Amp CT, Class 0.5, 28mm Aperture or 10x30mm Busbar

Features

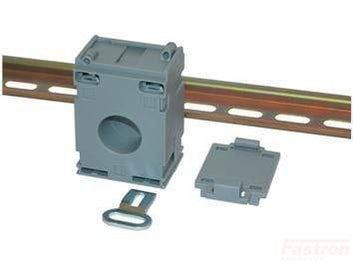

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Rishabh Part NumberCT 200/5 Class 0.5 10VA 62/30 (50)
    TechnologyAC Current Transformer
    Ratio200/5

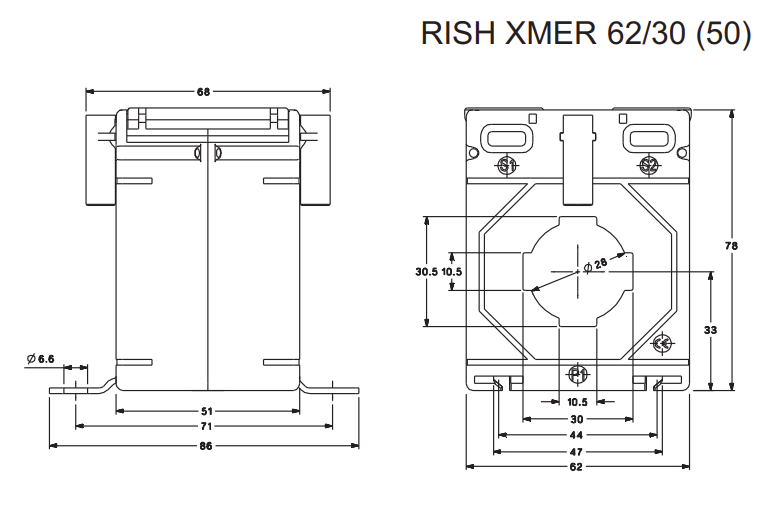

    Aperture Size28mm or 10x30mm Busbar
    VA Rating10VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)200Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9



    Datasheet
