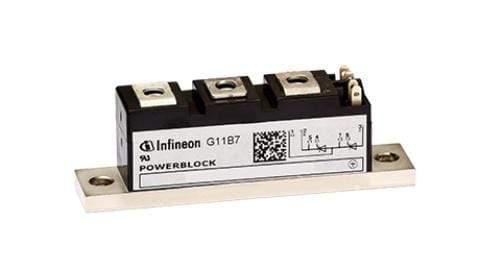

Infineon DD104N16K, Dual Diode Module 104 Amp, 1600V
Features
- Pressure Contact Technology
- Electrically insulated base plate
- Industrial standard package
- 2900V Isolation
- 20mm Base Width
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Deep Cycle Operation
- Rectifiers for UPS
- Battery Chargers
Specification
Infineon Part Number | DD104N16K |
Vrrm | 1600V |
Diode Configuration | Dual Diode Module |
IF(av) @ 100 Deg C | 104 Amp |
Package Size | W:20mm L:93mm D:30mm |
Itsm | 2.9 kA |
VF(to) | 0.7V |
Tj(max) | 150°C |
rF | 2.1mΩ |
Terminals | M5 Screw |
Hole Centres | 80mm (M6) |
Gate Terminals | N/A |
R th(j-c) | 0.195°C/W |
R th(c-h) | 0.10°C/W |
Weight | 160g |
Mounting Torque | 4 Nm (4 Nm Terminals) |
Factory Pack Qty | 15 |
Certification | UL Listed |
Infineon Headquarters | Germany |
Datasheet
Alternatives
See for IXYS or See for Infineon Solder Contact Alternative
