CT 150/5 Class 0.5 3.75VA 62/30 (40) Current Transformer - High Precision Electrical Measurement for Industrial Power Systems & Energy Monitoring
CT 150/5 Class 0.5 3.75VA 62/30 (40) Current Transformer - High Precision Electrical Measurement for Industrial Power Systems & Energy MonitoringCT 150/5 Class 0.5 3.75VA 62/30 (40) Current Transformer - High Precision Electrical Measurement for Industrial Power Systems & Energy MonitoringCT 150/5 Class 0.5 3.75VA 62/30 (40) Current Transformer - High Precision Electrical Measurement for Industrial Power Systems & Energy Monitoring

CT 150/5 Class 0.5 3.75VA 62/30 (40) Current Transformer - High Precision Electrical Measurement for Industrial Power Systems & Energy Monitoring

$15.4 $28 -45%

Free shipping on all orders over $50

7-15 days international

8 people viewing this product right now!

30-day free returns

Secure checkout

66799239

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

Rishabh CT 150/5 Class 0.5 3.75VA 62/30 (40) Series Current Transformer

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Rishabh Part NumberCT 150/5 Class 0.5 3.75VA 62/30 (40)
    TechnologyAC Current Transformer
    Ratio150/5

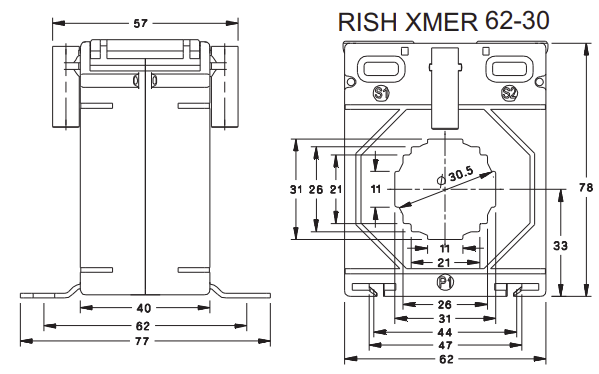

    Aperture Size⌀ 30mm or 26x10mm Busbar
    VA Rating3.75VA
    Accuracy ClassClass 0.5
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)150Amp x 1.2
    Termination StyleScrew
    Unit Weight300g
    Factory Pack Qty9



    Datasheet
