CT 50/5 Class 1 10VA 74W (45) Series High Burden Current Transformer - No Aperture - Ideal for Electrical Power Monitoring, Metering, and Protection Systems
CT 50/5 Class 1 10VA 74W (45) Series High Burden Current Transformer - No Aperture - Ideal for Electrical Power Monitoring, Metering, and Protection SystemsCT 50/5 Class 1 10VA 74W (45) Series High Burden Current Transformer - No Aperture - Ideal for Electrical Power Monitoring, Metering, and Protection SystemsCT 50/5 Class 1 10VA 74W (45) Series High Burden Current Transformer - No Aperture - Ideal for Electrical Power Monitoring, Metering, and Protection Systems

CT 50/5 Class 1 10VA 74W (45) Series High Burden Current Transformer - No Aperture - Ideal for Electrical Power Monitoring, Metering, and Protection Systems

$35.75 $65 -45%

Free shipping on all orders over $50

7-15 days international

20 people viewing this product right now!

30-day free returns

Secure checkout

85405859

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

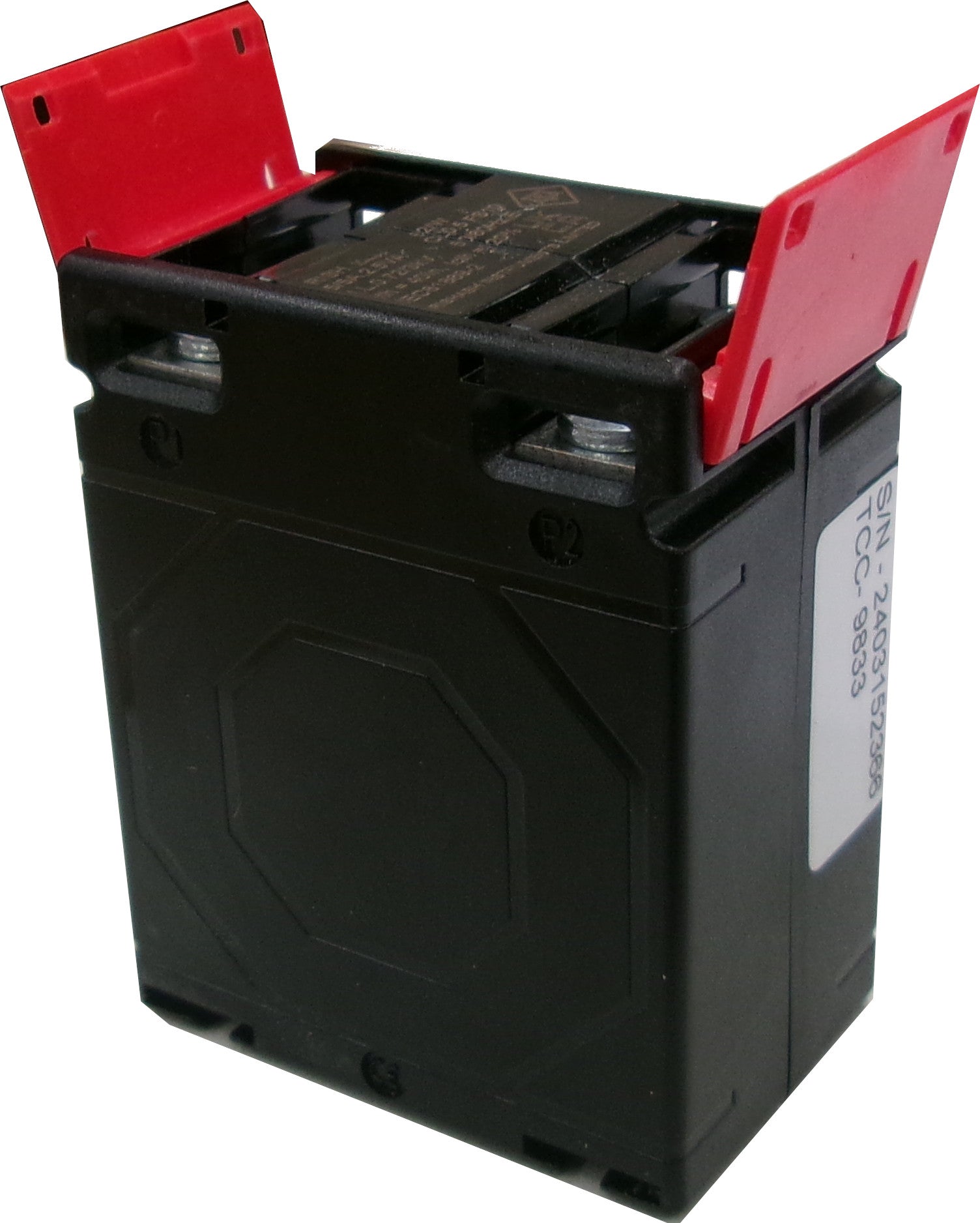

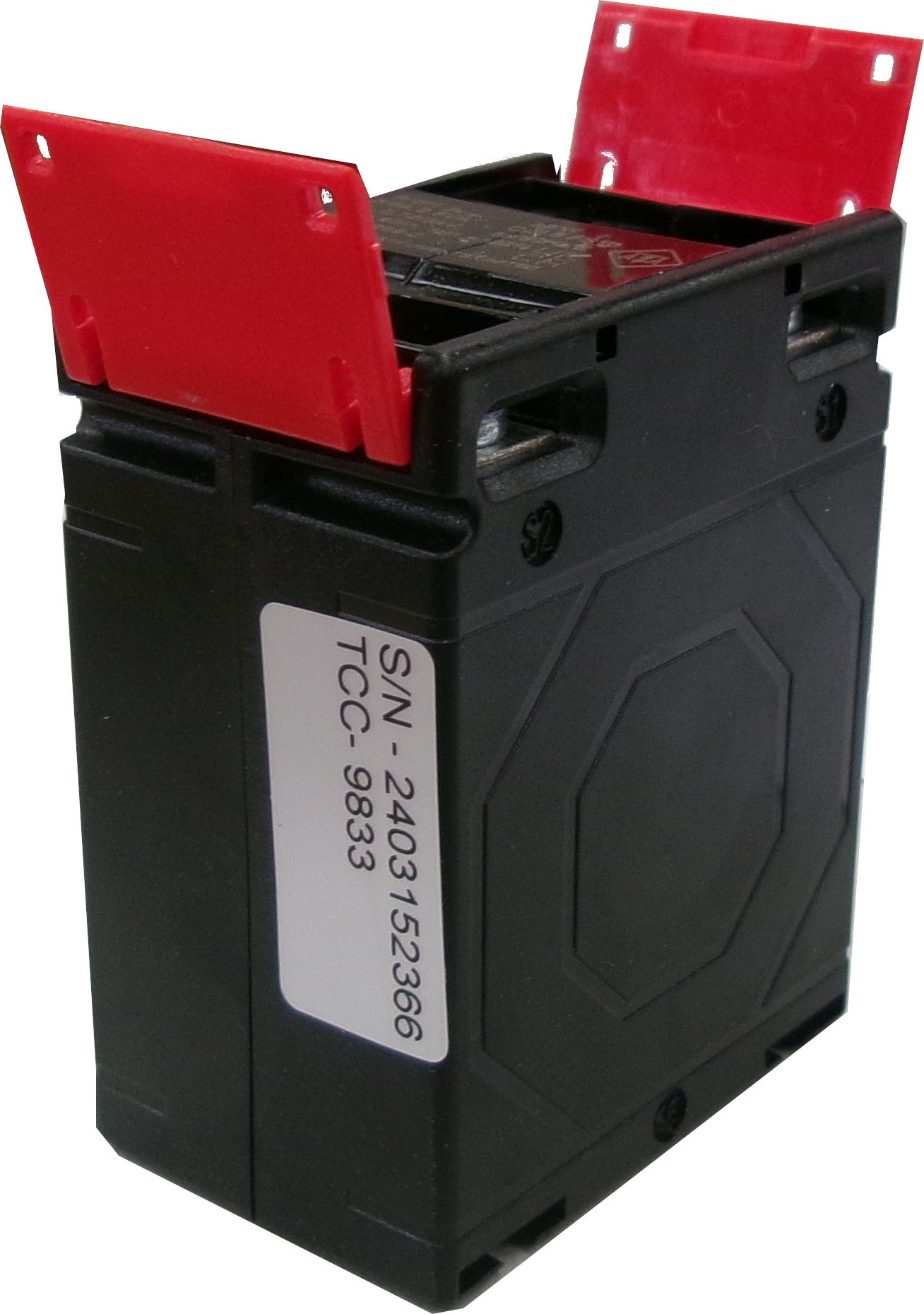

Rishabh CT 50/5 Class 1 10VA 74W (45) Series Current Transformer, HIGH BURDEN, Without Aperture

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied

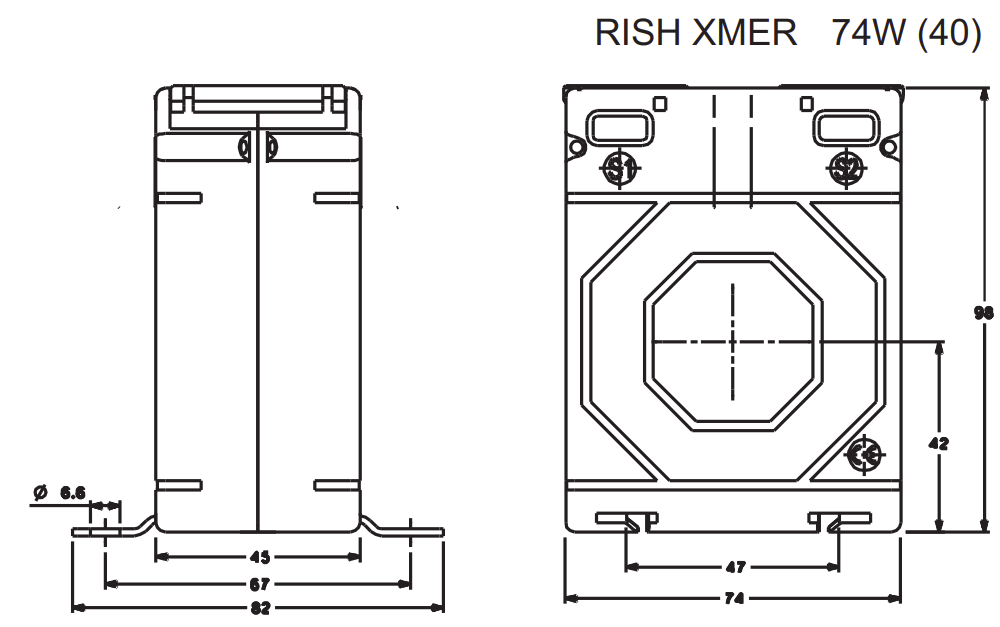

  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Specification
    Rishabh Part NumberCT 50/5 Class 1 10VA 74W (45)
    TechnologyAC Current Transformer
    Ratio50/5
    Aperture SizeNo Apeture. Cable passed through P1(Incoming) and P2(Load Side) terminals
    VA Rating10VA
    Accuracy ClassClass 1
    Output5 Amp AC (+20%)
    Isolation3kV (AC, 50Hz, 1 min)
    Bandwidth50-60Hz
    Mounting StylePanel Mount/Din Rail Mount
    Operating Temperature Range-30°C / 85°C
    Continuous Current (max)50Amp x 1.2
    Termination StyleScrew
    Unit Weight450g
    Factory Pack Qty9



    Datasheet
